LTERIVER PCIE to 2-Ports Serial ATA/SATA 3.0 Host Controller Card, Plug and Play on Windows OS, MAC OS and Linux Kernel PCs, 2X 6Gbps Max SATA 3.0 None Raid Ports-Support AHCI Boot Up (PCE-G2S2)

LTERIVER PCE-G2S2 is a PCI Express Gen 2 to SATA III (Serial ATA) 6Gbps controller. It will covert PCIE X1 signal to 2-Ports SATA III on desktop PCs and Servers. Allow users add 2X max SATA HDD/SSD on their system for Boot Up or Storage. This PCIE SATA III card will support Plug and Play on Windows, Linux and MAC OS systems, now no need to install driver anymore for PCIE SATA expansion cards.

WARNING:

1. This PCE-G2S2 PCIE SATA card no need to install driver, if PCs or Servers cannot find the added-on HDD/SSD and this device, then double check if the mother board PCIE slot is active and open. Some brand mother board may have defined PCIE function when it produced. User better call mother board manufacture locate the problem.

2. PCE-G2S2 was set on AHCI Boot Up mode. If users using the classical IDE mode, user’s PC will report BSD error. If users do not know which mode is running on PCs, follow steps as below: Windows Device Manage-IDE ATA/ATAPI Controllers- Will see “XXXX SATA AHCI controllers” or “XXX IDE controllers”.

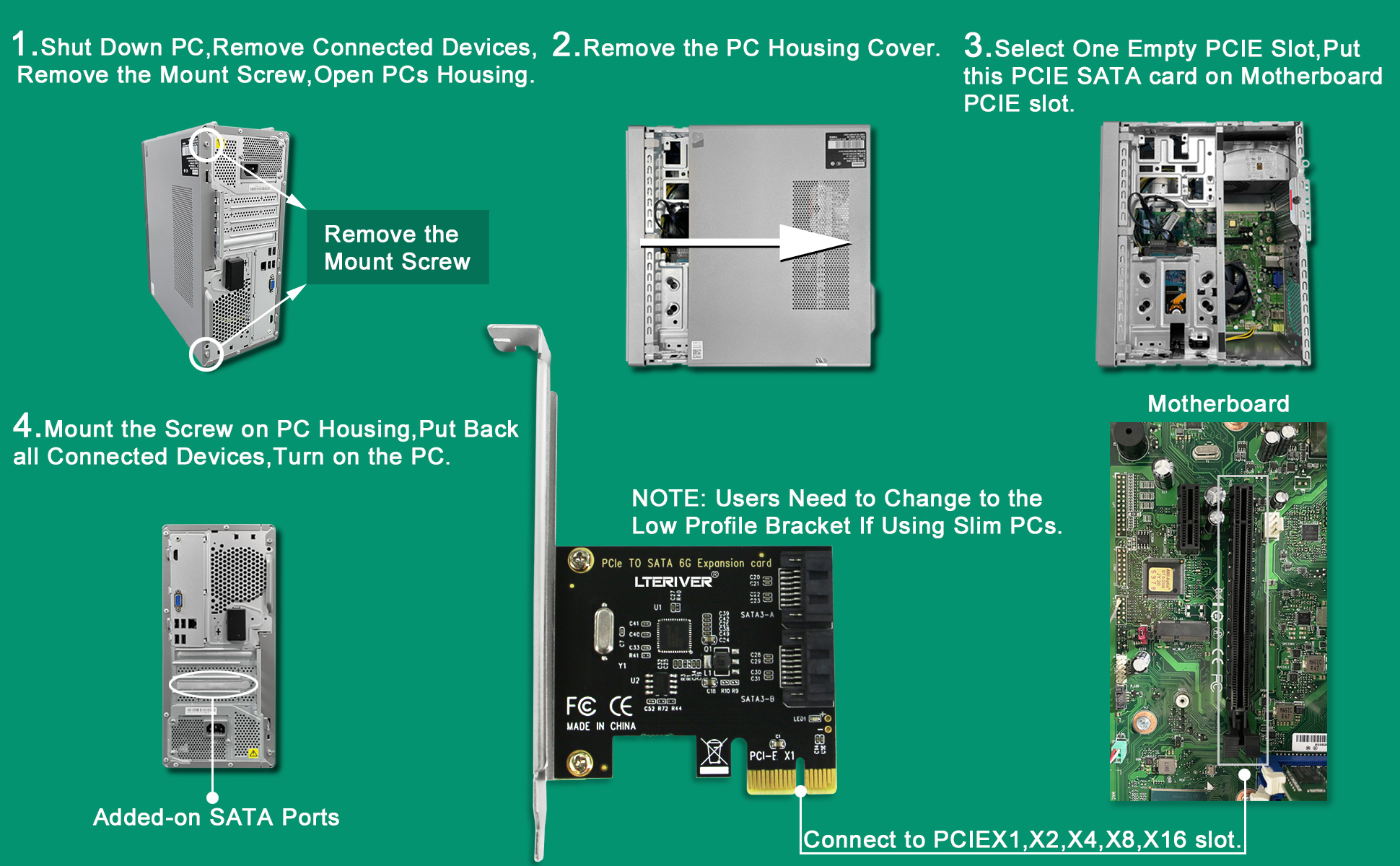

3. PCE-G2S2 is designed on PCIE X1 interface, will works on PCIE X1, X2, X4, X8, X16 slot. Normal users better check if it has empty PCIE slot before purchase.

4. If user add the new or recovered HDD/SSD on the system, users must add this disk on system by Windows reminder in Windows Device Manager-Storage-Disk Management.

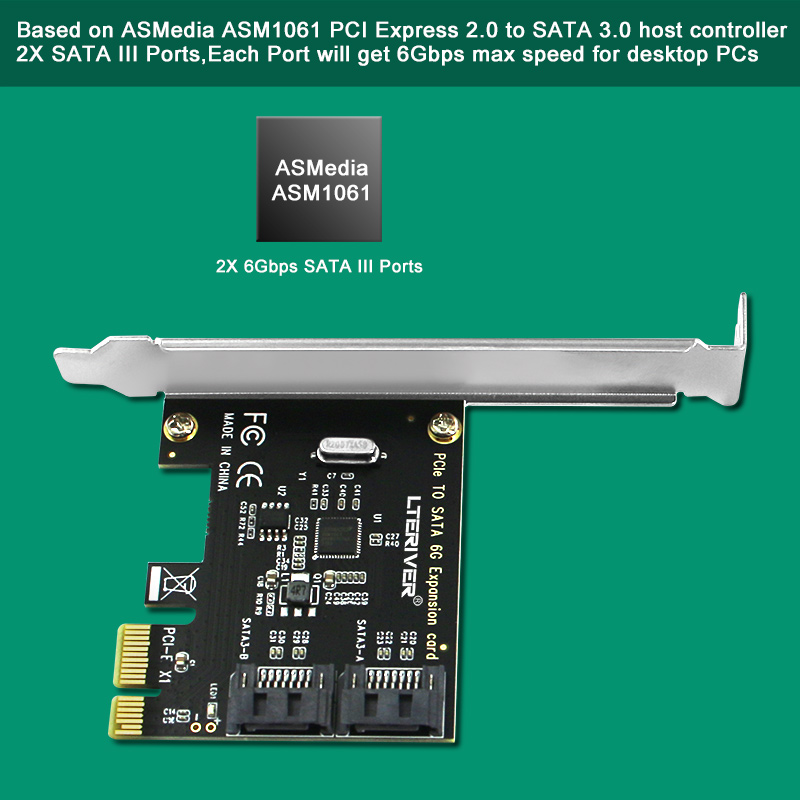

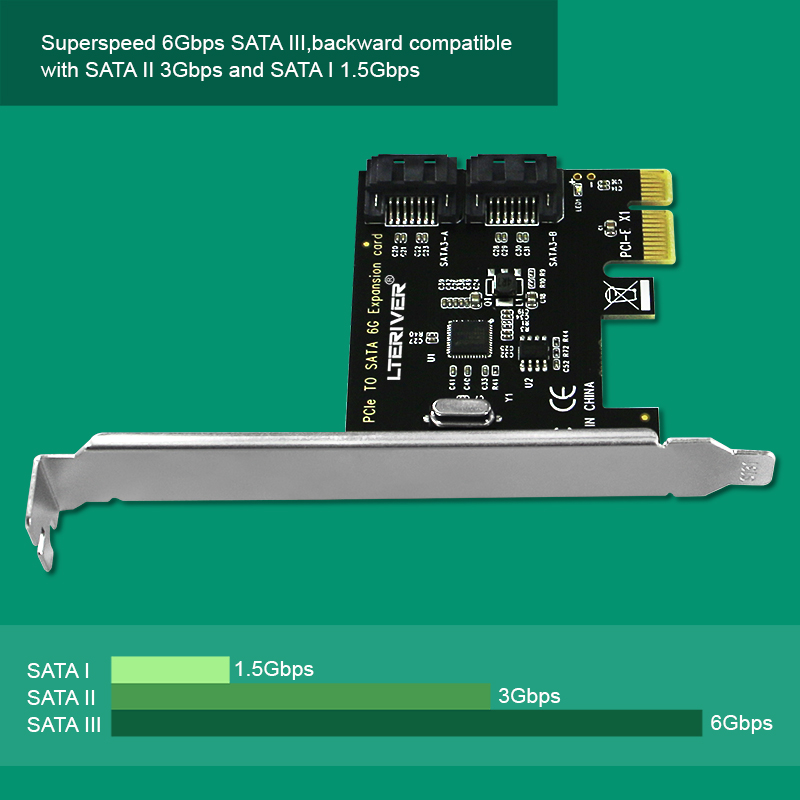

1. Based on ASMedia ASM1061 SATA III (Serial ATA) advantage HCI controller. Complies with Serial ATA Revision 3.0. Support SATA III speed 6Gbps, SATA II speed 3Gbps, SATA 1 speed 1.5Gbps.

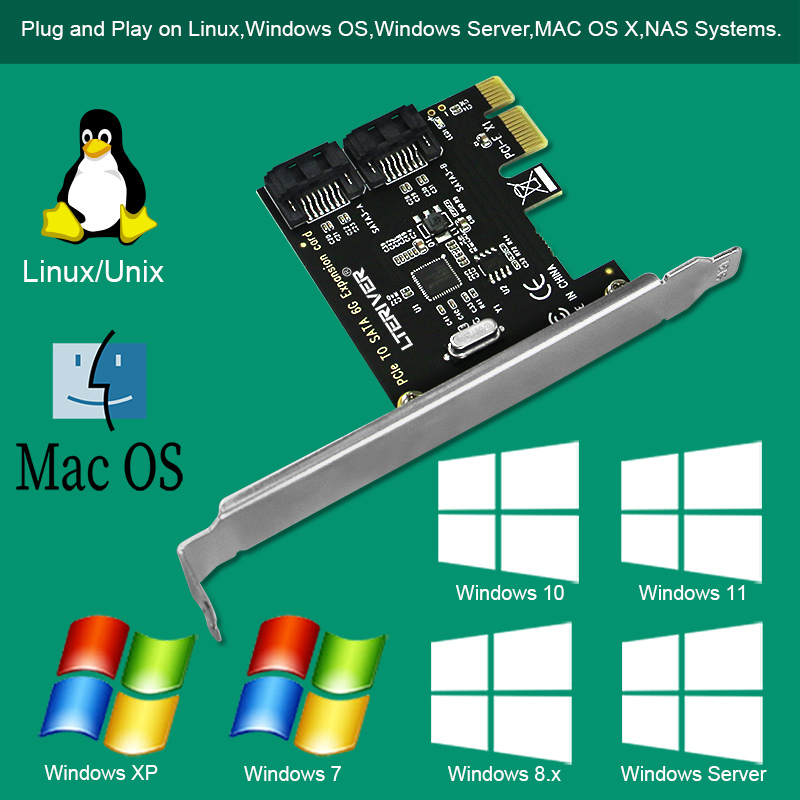

2. Support Plug and Play on Windows OS and Windows Servers, MAC OS and Linux Kernel systems. Supports AMD, ARM, INTEL, and MAC hardware platform.

3. PCIE Gen2 X1 interface design, will works on PCIEX1, X2, X4, X8, X16 slot. Users need to check if PCs or Servers have at least one PCIE X1 slot on mother board before purchase.

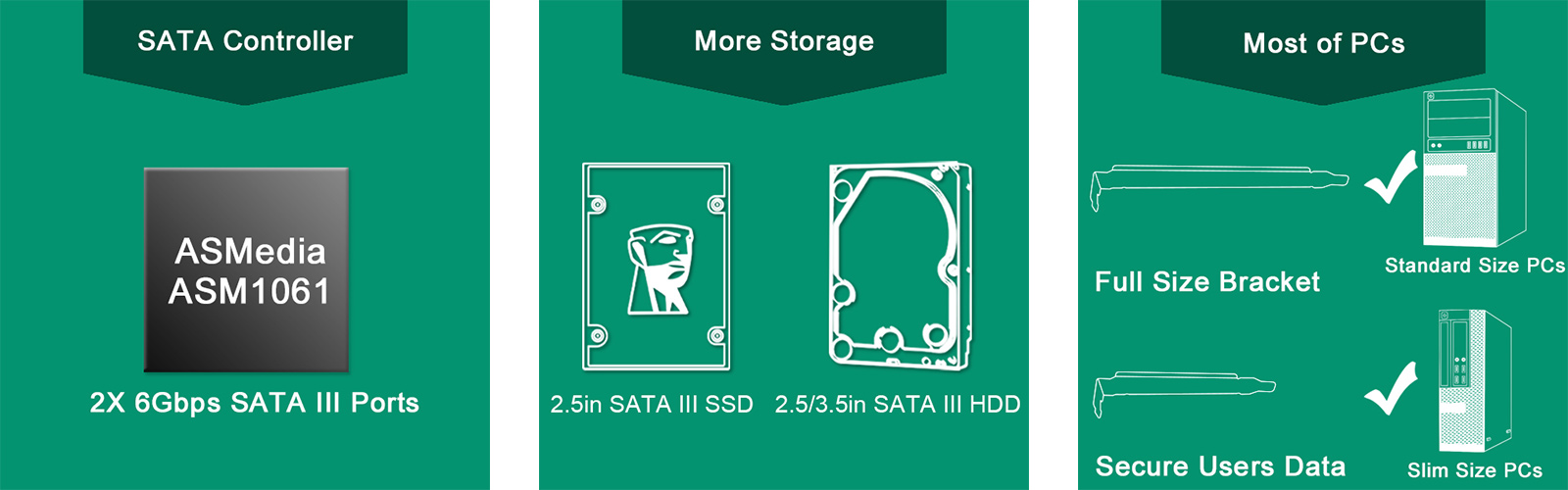

1. Select the ASMedia ASM1061 PCIE to SATA III Host Controller. Will Work on AMD, ARM and INTEL Hardware Platform.

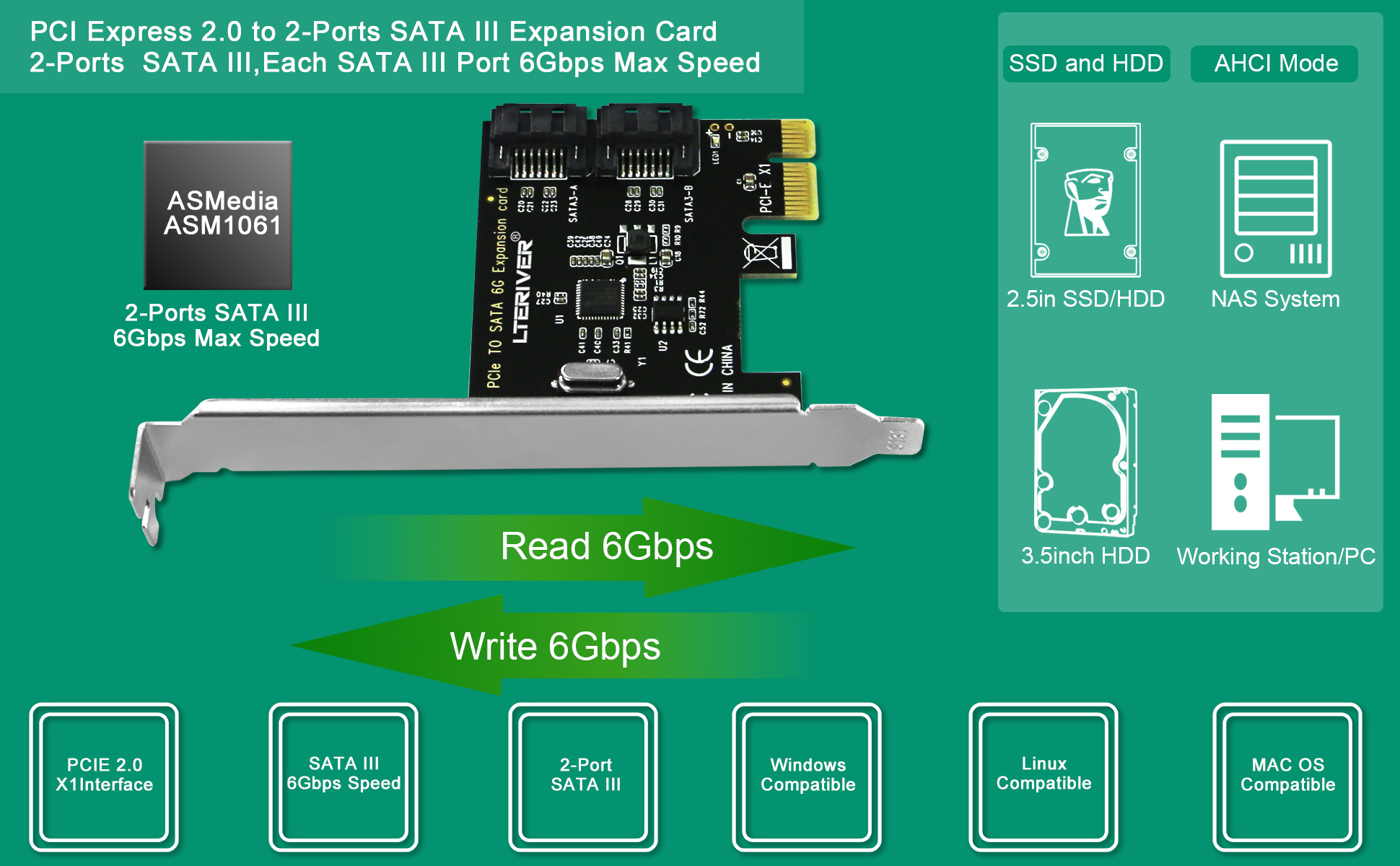

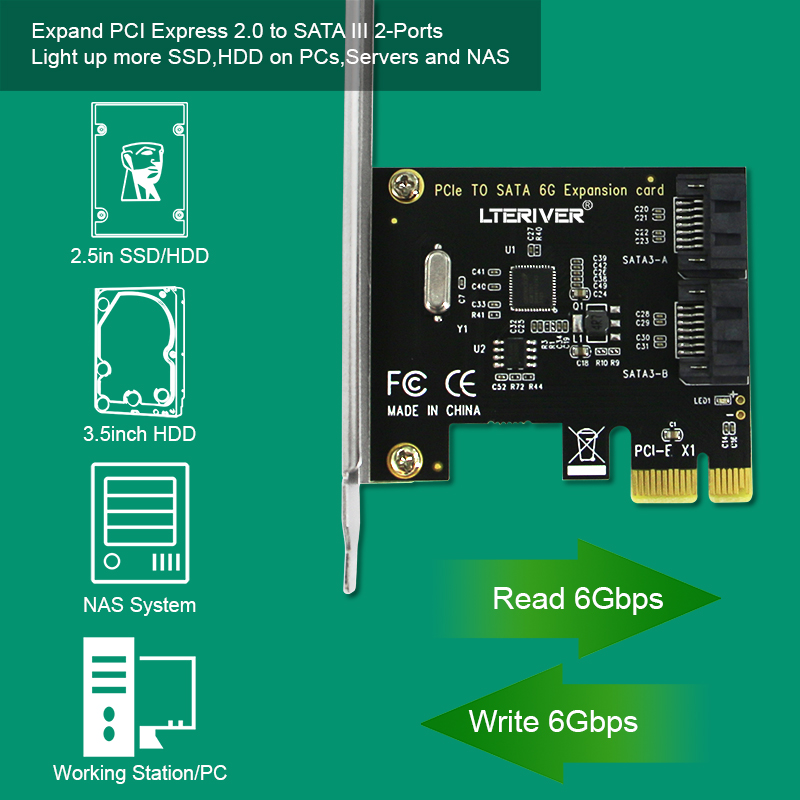

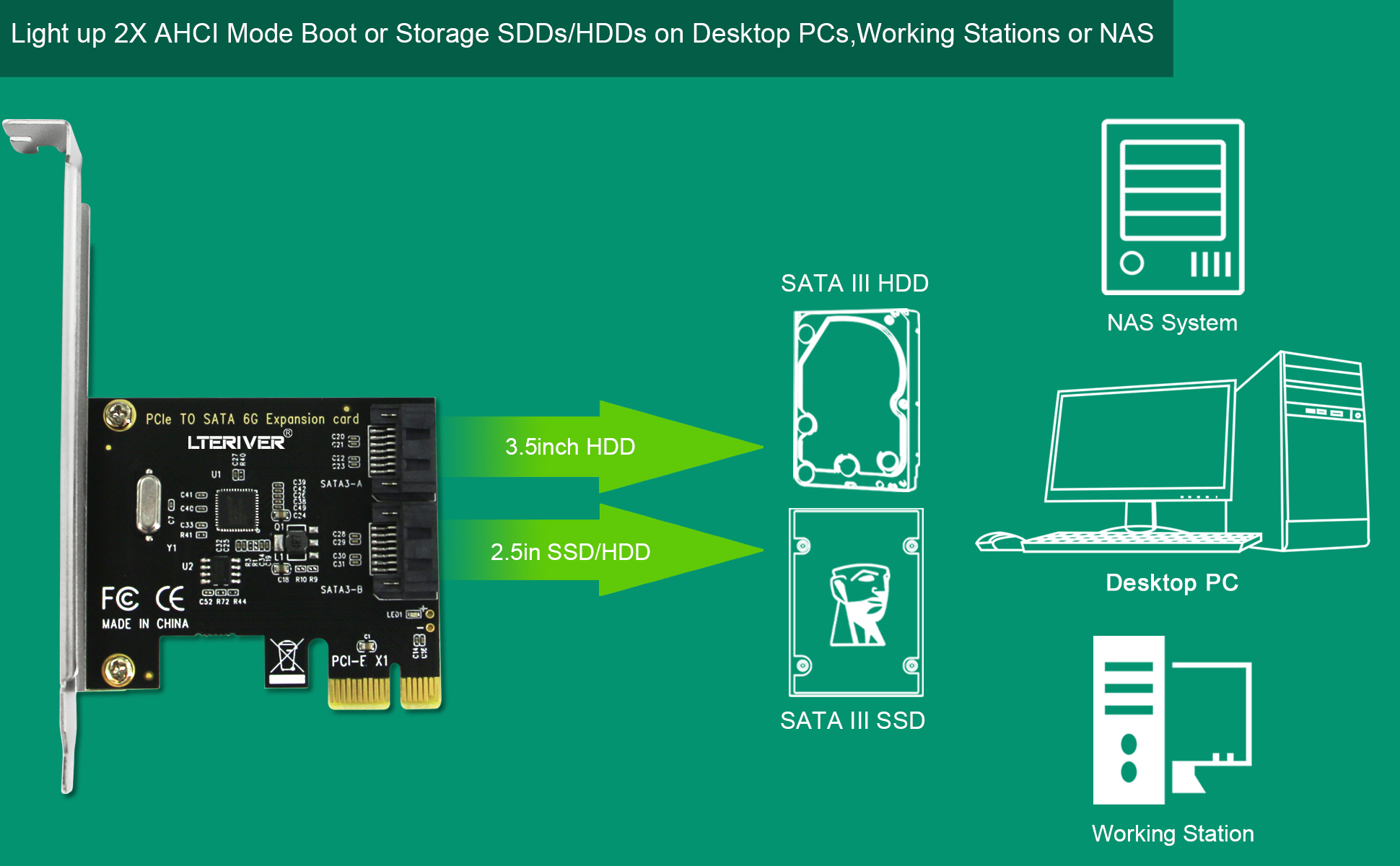

2. The PCE-G2S2 PCIE to 2-Ports NONE-RAID SATA III 6Gbps card will allow users add 2X SATA III ports on desktop PCs, Servers, and NAS system for HDD/SSD storage expansion or boot up.

3. The Full Size Bracket Mounted on this PCIE SATA Card, will Work on Standard Size PCs. The Low Profile Bracket in the Package will Work on Slim Size PCs.

Product Description:

LTERIVER PCE-G2S2 is a PCI Express Gen 2 to SATA III (Serial ATA) 6Gbps controller. It will covert PCIE X1 signal to 2-Ports SATA III on desktop PCs and Servers. Allow users add 2X max SATA HDD/SSD on their system for Boot Up or Storage. This PCIE SATA III card will support Plug and Play on Windows, Linux and MAC OS systems, now no need to install driver anymore for PCIE SATA expansion cards.

WARNING:

1. This PCE-G2S2 PCIE SATA card no need to install driver, if PCs or Servers cannot find the added-on HDD/SSD and this device, then double check if the mother board PCIE slot is active and open. Some brand mother board may have defined PCIE function when it produced. User better call mother board manufacture locate the problem.

2. PCE-G2S2 was set on AHCI Boot Up mode. If users using the classical IDE mode, user’s PC will report BSD error. If users do not know which mode is running on PCs, follow steps as below: Windows Device Manage-IDE ATA/ATAPI Controllers- Will see “XXXX SATA AHCI controllers” or “XXX IDE controllers”.

3. PCE-G2S2 is designed on PCIE X1 interface, will works on PCIE X1, X2, X4, X8, X16 slot. Normal users better check if it has empty PCIE slot before purchase.

4. If user add the new or recovered HDD/SSD on the system, users must add this disk on system by Windows reminder in Windows Device Manager-Storage-Disk Management.

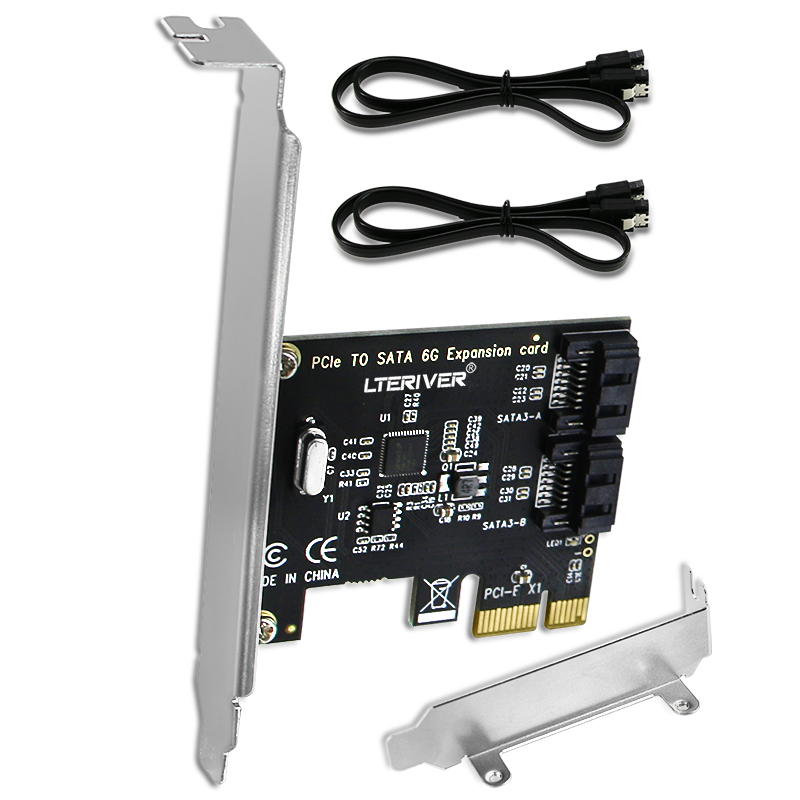

Package: 1X PCE-G2S2, 1X User Manual, 1X Low Profile Bracket, 1X Mount Screw, 2X SATA Cable
