PCI Express to 2 USB 3.1 Gen2 Type A 10Gbps Ports Expansion Card for Windows 7, 8.1, 10, 11 (32/64) and MAC OS 10.9,10.10,10.12,10.13,10.14,10.15 PCs-with Smart Power Control Technology (PCE-U312A)

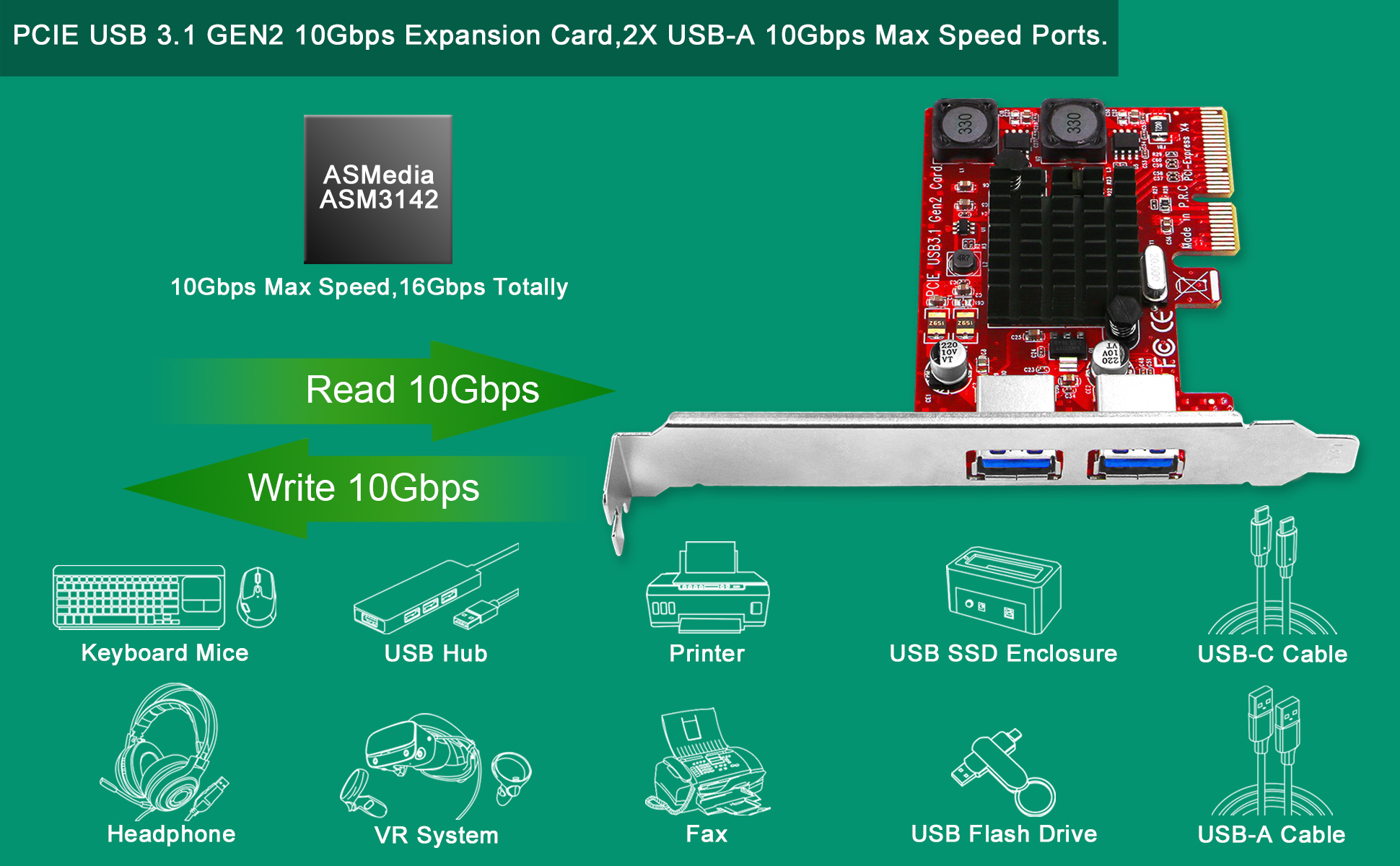

LTERIVER PCE-U312A allow users add 2X USB 3.1 Gen2 type A 10Gbps max ports on desktop computers. These 2X USB-A ports will share 16Gbps total bandwidth, each USB-A ports will get 10Gbps max super speed plus data transfer rate for USB 3.1 device such as USB 3.1 NVME SSD enclosure, USB 3.1 extension HUB. Equipped with the Smart Power Control technology, users no need to plug any power cable, but each connected USB 3.1 device can get 5V/3A max power supply.

LTERIVER Smart Power Control Technology

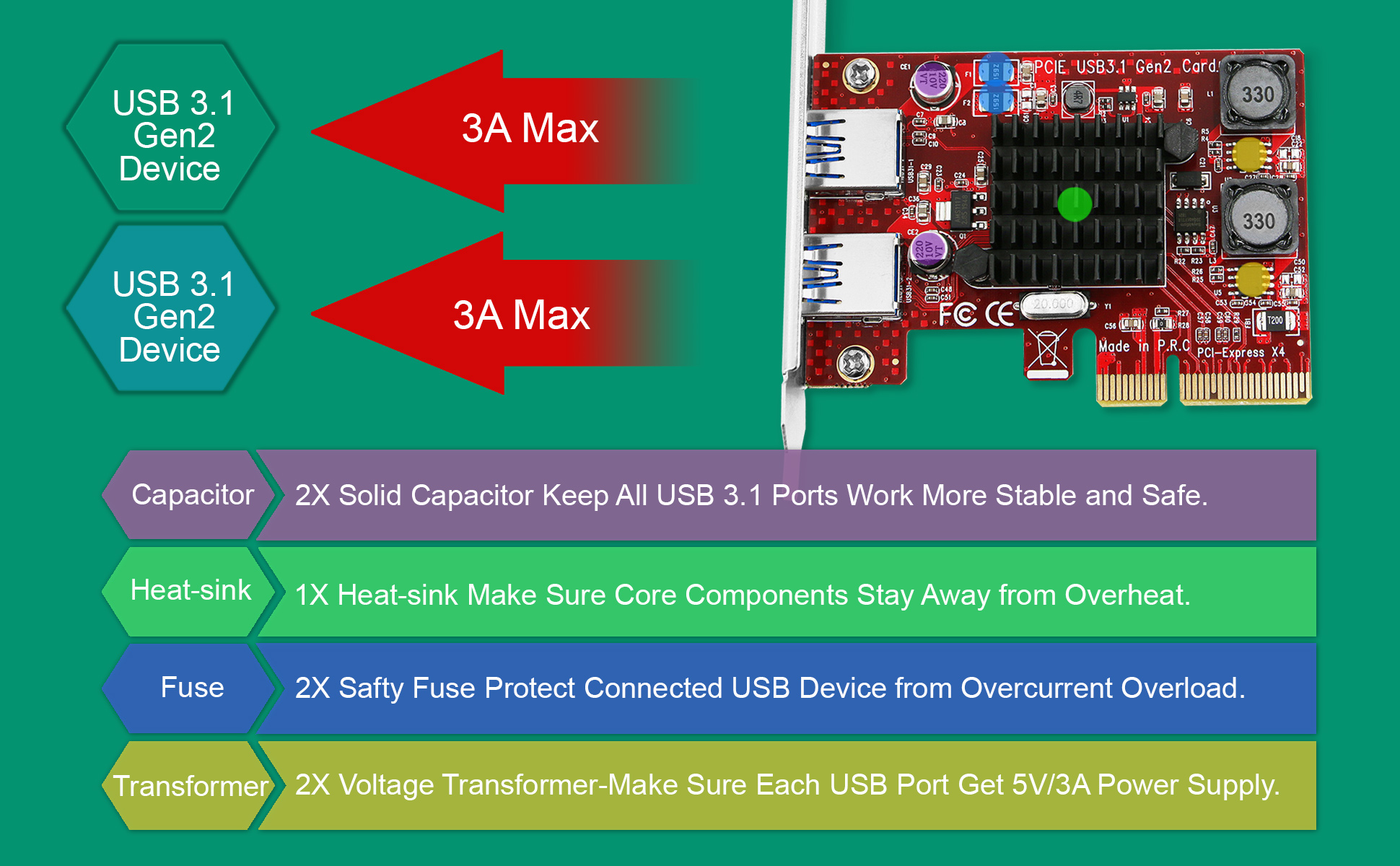

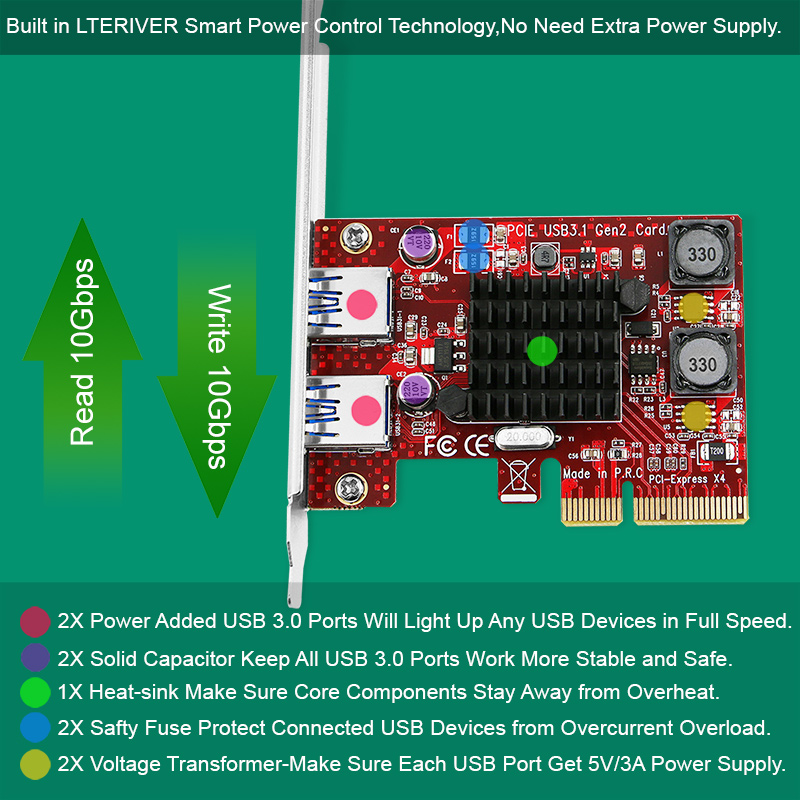

Smart Power Control Technology is a solution to add enough power supply on USB 3.1 cards. The old version USB host controller card need to install additional power cable. The Smart Power Control Technology designed 2X voltage transformer to pick up power from mother board PCIE slot, convert 12V power to 5V and allocate 5V/3A to each USB 3.1 Port. Meanwhile, Smart Power Control Technology equipped 3X fuse and 2X solid capacitor to protect connected USB 3.1 device from overload, overcurrent or overheat. Make sure connected USB 3.1 device running in high performance without any power cable installation.

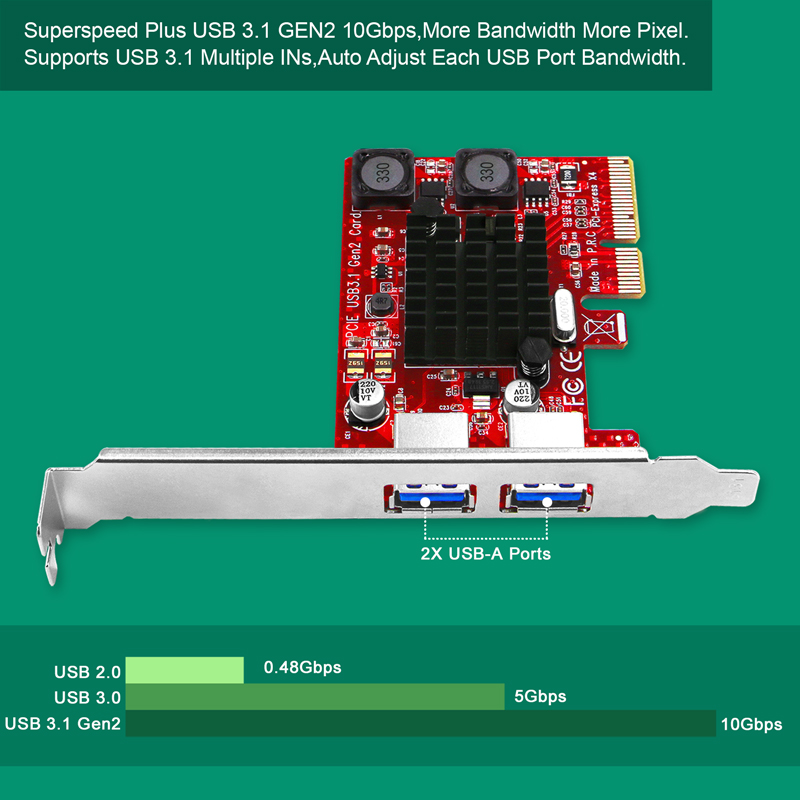

1. Add 2X USB 3.1 Gen2 Type A 10Gbps (16Gbps total bandwidth) ports on desktop computer. Each USB-A port will get superb speed plus 10Gbps max rate for video, audio data transfer.

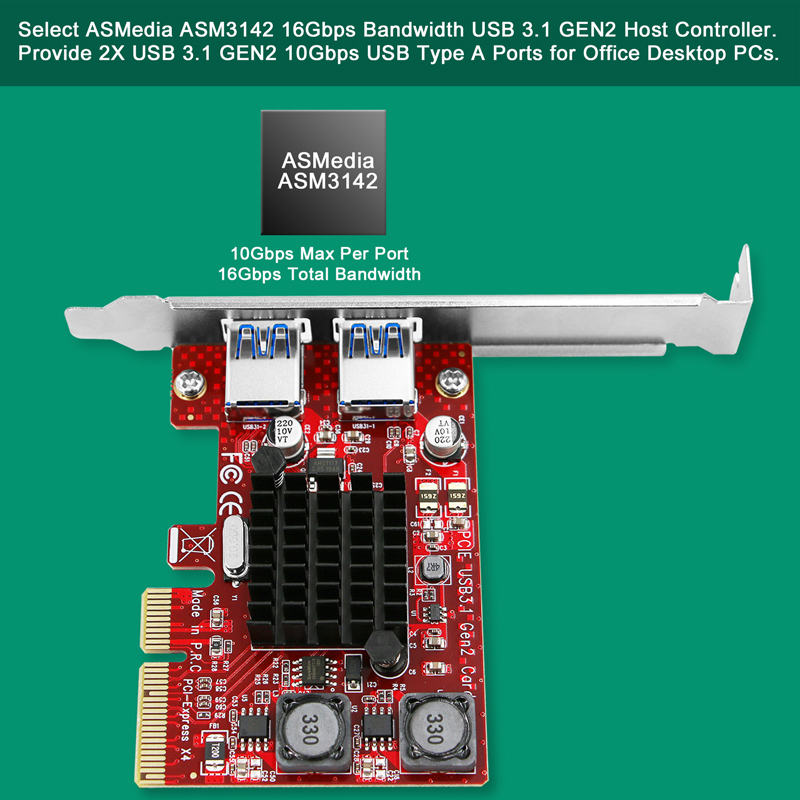

2. Designed a Heat-sink will cool the major chip ASMedia ASM3142.Help connected USB 3.1 Gen 2 device hit the speed 10Gbps max.

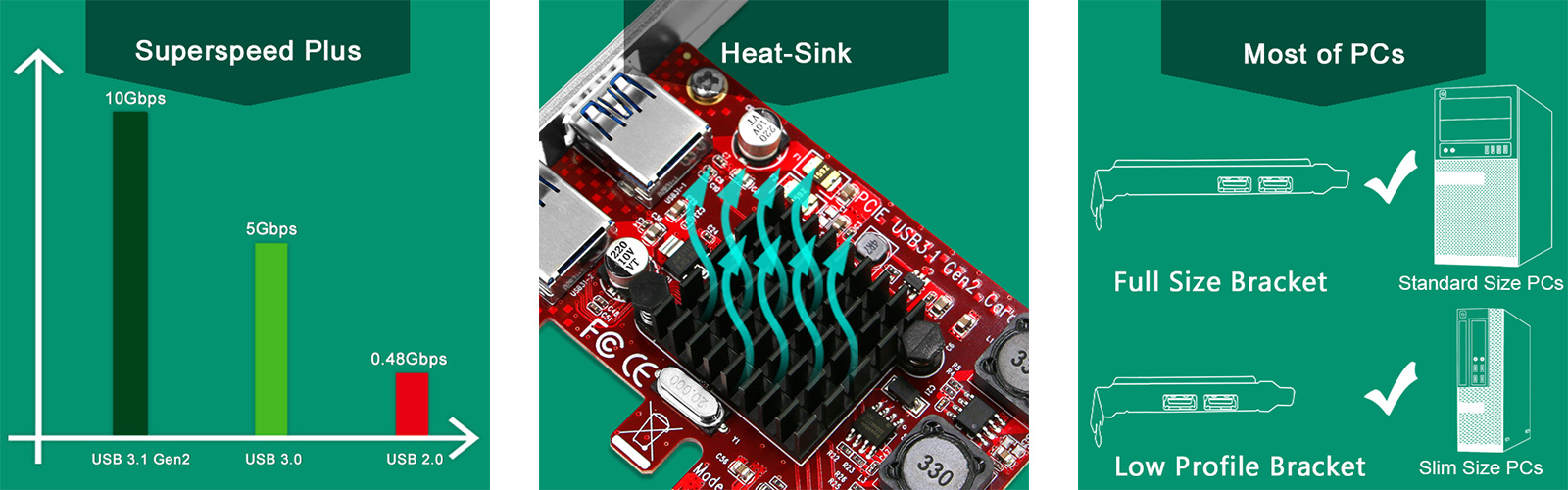

3. Works on 12cm width Full Size PCs and 8cm width Slim Size PCs. Slim PC users need to change USB card to low profile bracket.

1. Need to install driver on Windows 7 and Windows Server 2008, 2008R2 (32/64bit) system. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012,2012R2,2016, 2019, 2022 system. Plug and play on MAC OS 10.9,10.10,10.12,10.13,10.14 and 10.15 system, NOT support MAC OS 10.11 system.

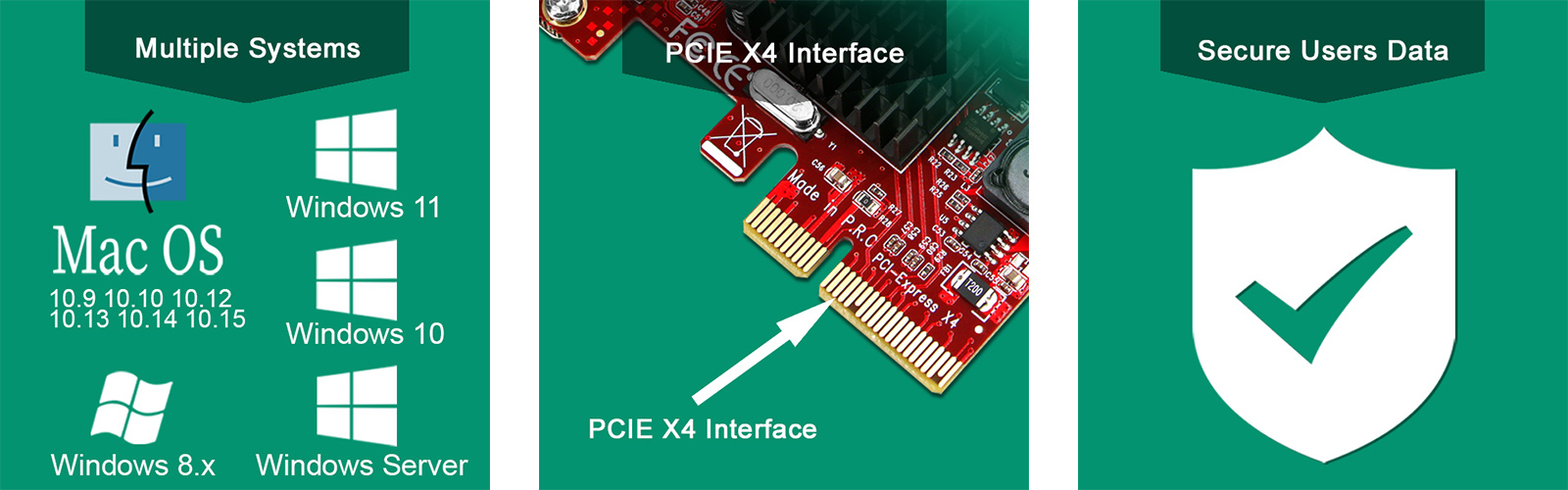

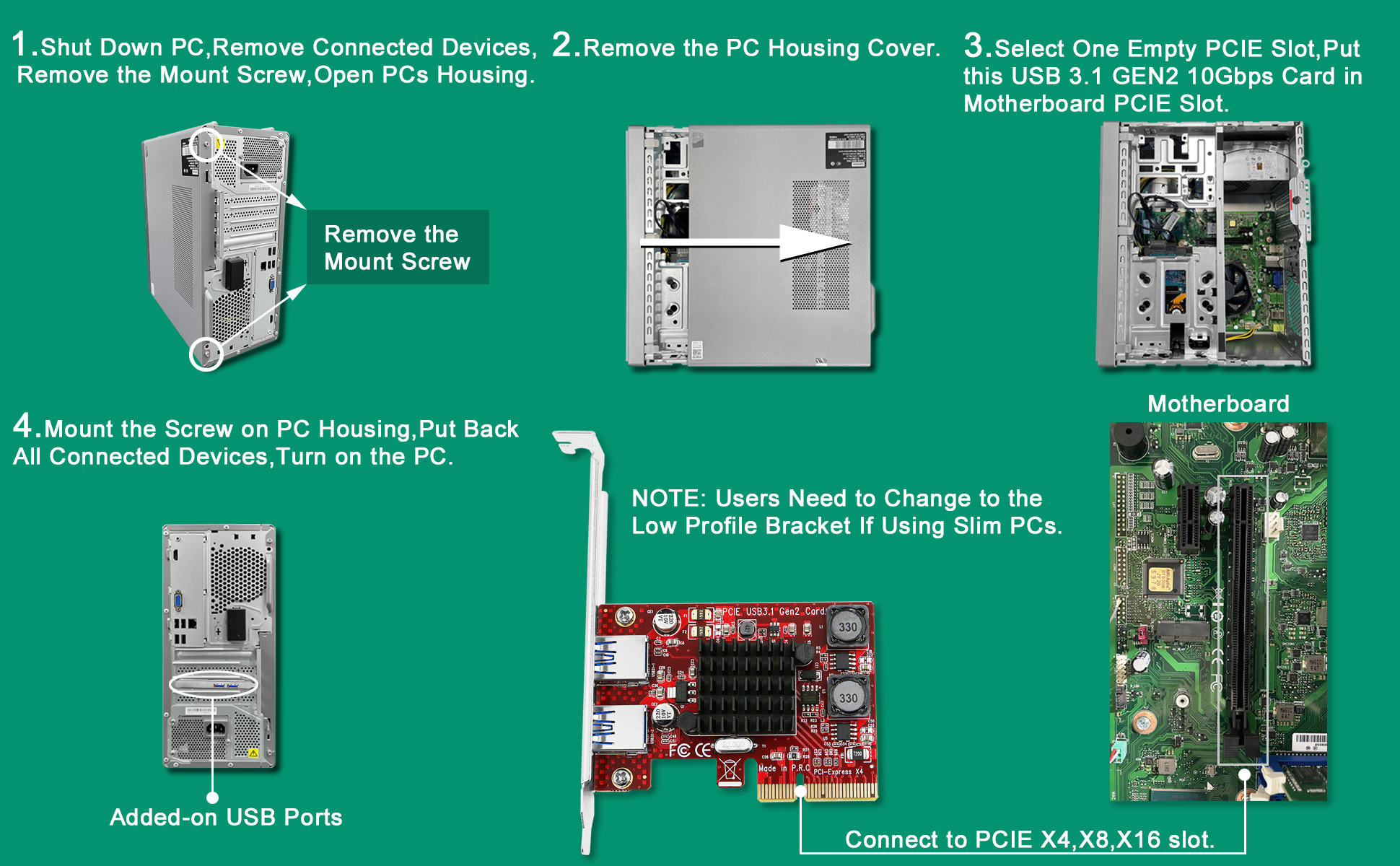

2. PCIE 3.0 X4 interface design will compatible with PCIE X4, X8, X16 slot. NOT support PCIE X1, X2 slot, please check if PCs have PCIE X4 X8 or X16 slot before purchase.

3. Equipped with LTERIVER Smart Power Control Technology. No need to plug any power cable, but each USB port can get 5V/3A max power,5V/6A in total. Make sure connected USB 3.1 Gen2 device works in high performance.

Product Description:

LTERIVER PCE-U312A allow users add 2X USB 3.1 Gen2 type A 10Gbps max ports on desktop computers. These 2X USB-A ports will share 16Gbps total bandwidth, each USB-A ports will get 10Gbps max super speed plus data transfer rate for USB 3.1 device such as USB 3.1 NVME SSD enclosure, USB 3.1 extension HUB. Equipped with the Smart Power Control technology, users no need to plug any power cable, but each connected USB 3.1 device can get 5V/3A max power supply.

LTERIVER Smart Power Control Technology

Smart Power Control Technology is a solution to add enough power supply on USB 3.1 cards. The old version USB host controller card need to install additional power cable. The Smart Power Control Technology designed 2X voltage transformer to pick up power from mother board PCIE slot, convert 12V power to 5V and allocate 5V/3A to each USB 3.1 Port. Meanwhile, Smart Power Control Technology equipped 3X fuse and 2X solid capacitor to protect connected USB 3.1 device from overload, overcurrent or overheat. Make sure connected USB 3.1 device running in high performance without any power cable installation.

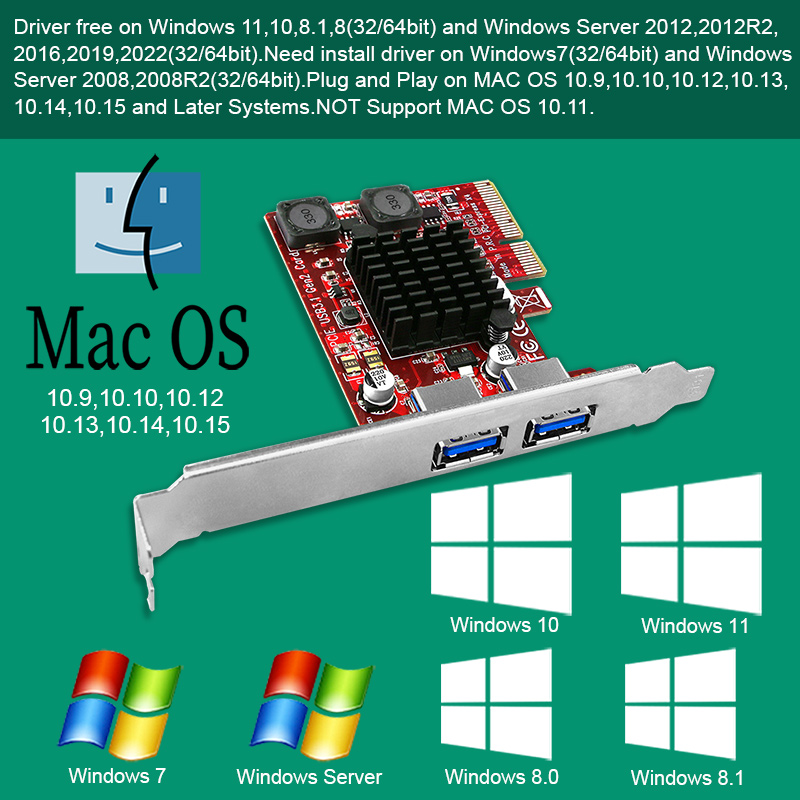

System Compatibility:

1. Driver free on Windows 8.0, 8.1, 10, 11(32/64bit) and Windows Server 2012, 2012R2, 2016, 2019,2022 system.

2. Need to install driver on Windows 7 and Windows Server 2008, 2008R2(32/64bit) system.

3. Plug and play on MAC OS 10.9, 10.10, 10.12, 10.13, 10.14 and 10.15, NOT support MAC OS 10.11 system.

WARNING:

1. Please use USB 3.1 Gen2 device test speed or can't get peak speed 10Gbps.

2. PCIE 3.0/4.0 X4, X8, X16 slot provides speed 16Gbps total bandwidth. PCIE 2.0 X4, X8, X16 slot provides speed 10Gbps bandwidth.

3. PCIE 1.0 X4, X8, X16 slot provides speed 5Gbps bandwidth. So, users better put it on PCIE 3.0/4.0 slot to hit the peak speed 10Gbps.

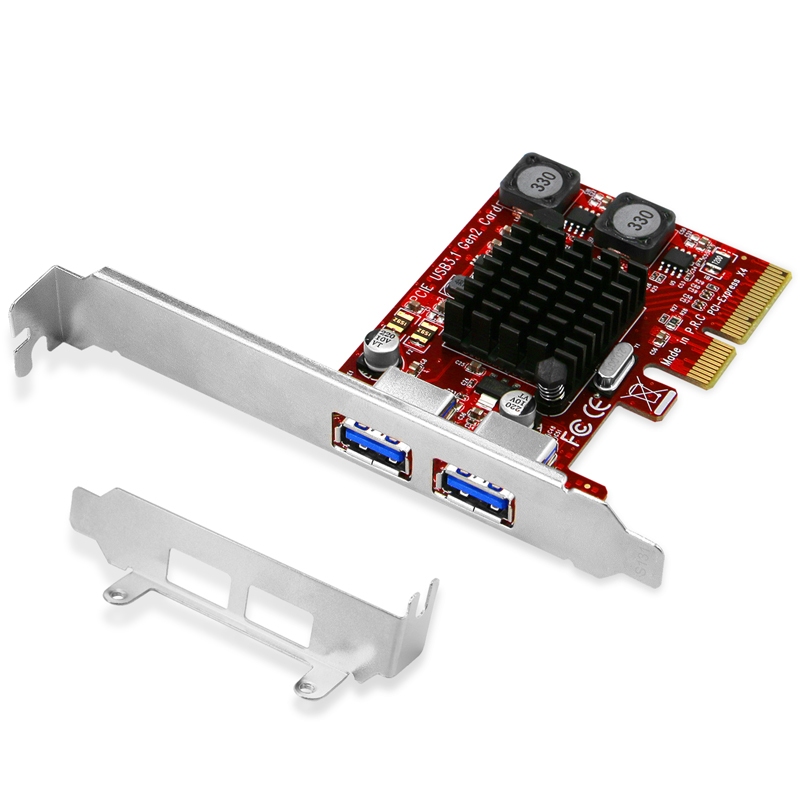

Package List: 1X PCE-U312A, 1X User Manual, 1X Mount Screw, 1X Low Profile Bracket, 1X Mini CD
