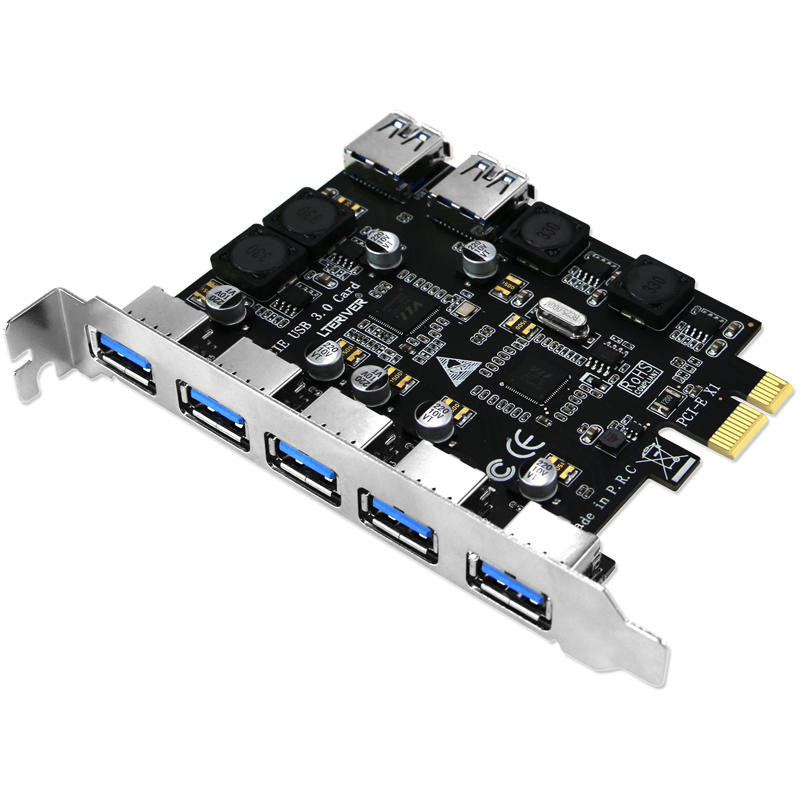

LTERIVER PCIE 7 Ports Super Speed USB 3.0 Card for Windows Server, XP, Vista, 7, 8.x, 10, 11 (32/64bit) PCs, Built in Smart Power Control Technology, No Additional Power Supply Needed(PCE-U307A)

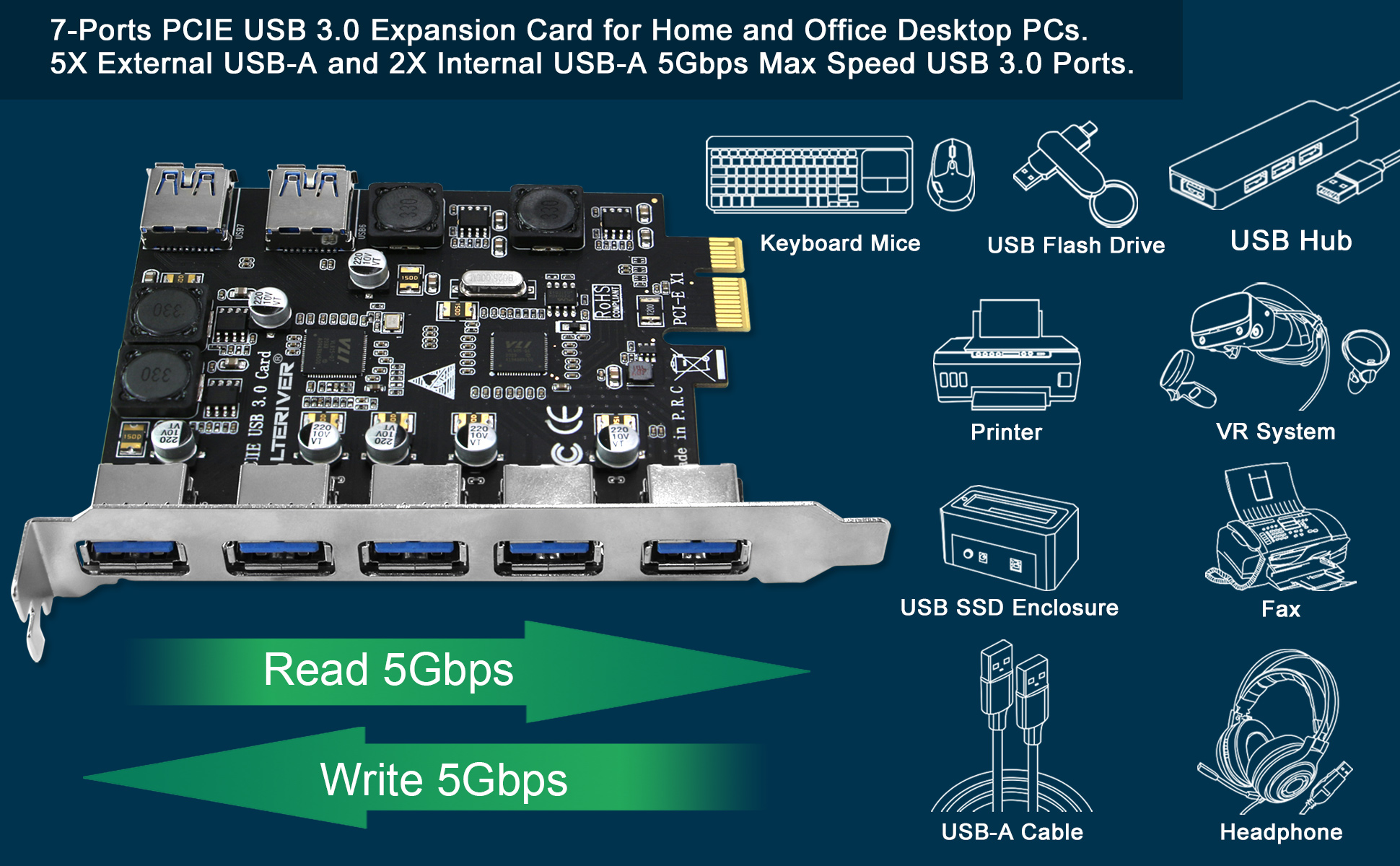

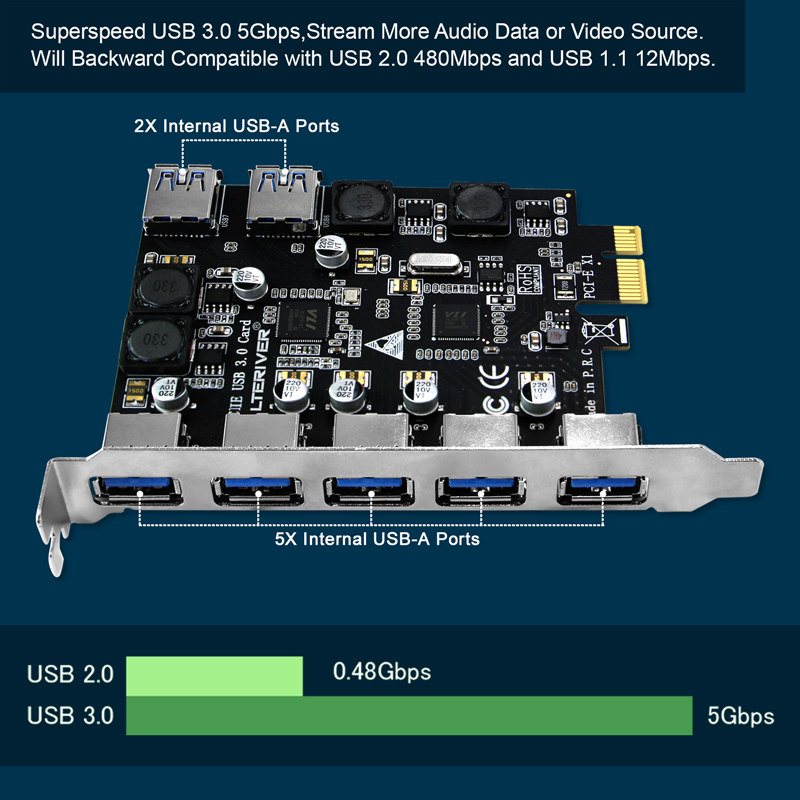

PCE-U307A allow users add 7 USB 3.0 ports on desktop computers, will light up more USB device such as mice, keyboards, hubs, flash drive, hard drive etc. It will provide 5Gbps USB 3.0 total speed for video, audio or large data files transfer. Built in LTERIVER Smart Power Control Technology make sure connected high power consumption device always works in full performance.

LTERIVER Smart Power Control Technology

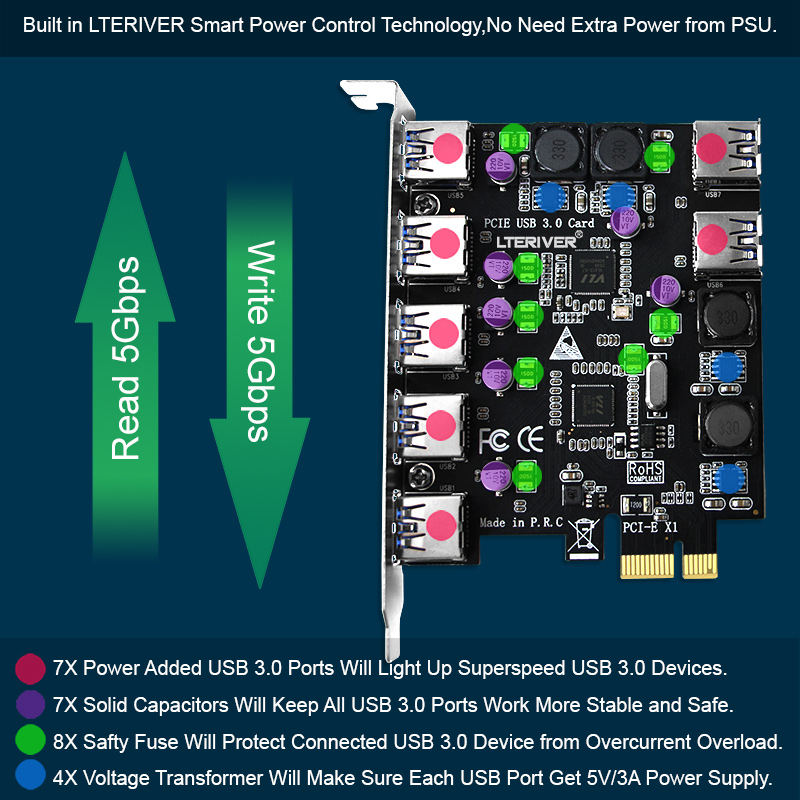

The LTERIVER Smart Power Control Technology is a new solution to add enough power supply on USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed 4X voltage transformer to pick up power from mother board, convert 12V/3.4A power to USB 5V/8A totally power and allocate 5V/2A max to each USB 3.0 port. Meanwhile, the 8X fuse and 7X solid capacitor protect connected USB 3.0 device from overload, over-current, overheat. Make sure all connected USB device works in full performance. Keep users’ data safe and complete.

1. Add 7X super speed USB 3.0 5Gbps ports (total bandwidth) on desktop PCs for video, audio or large data files transfer. Active more USB device on desktop PCs and Servers with this added-on USB expansion card.

2. Need to install driver on Windows Server 2003, 2003R2, 2008, 2008R2, XP, Vista, 7 (32/64bit) system. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 system.

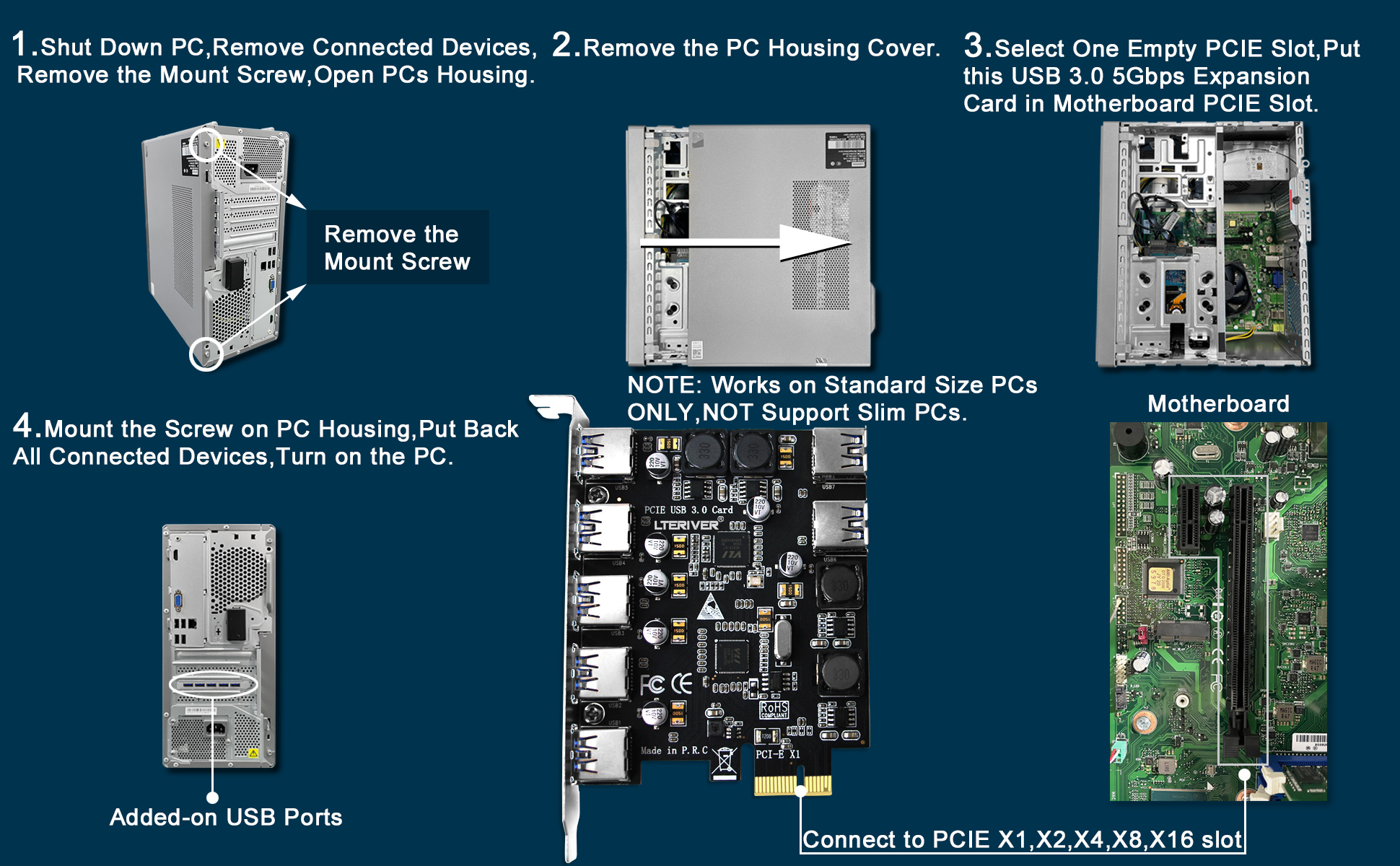

3. WARNING: 1. Works on full size PCs only, NOT for slim PCs. 2. Check If PCs have empty PCIE slot for PCIE USB card before purchase. 3.Install driver before using for some old version system.

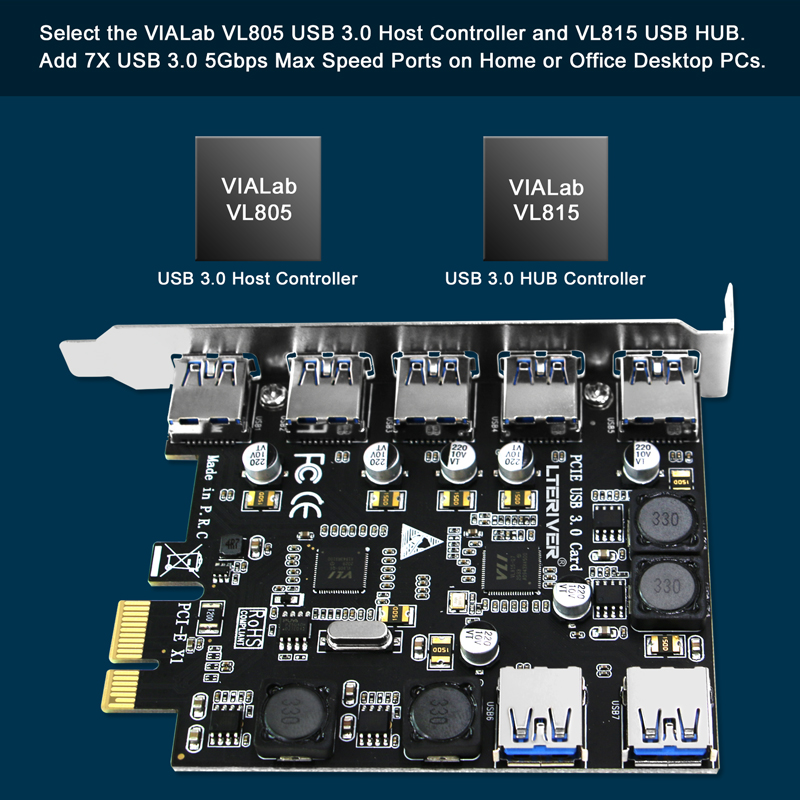

1. Select the VIALab USB 3.0 Host Controller and USB 3.0 HUB Controller, will Compatible with INTEL, AMD and ARM Hardware Platform.

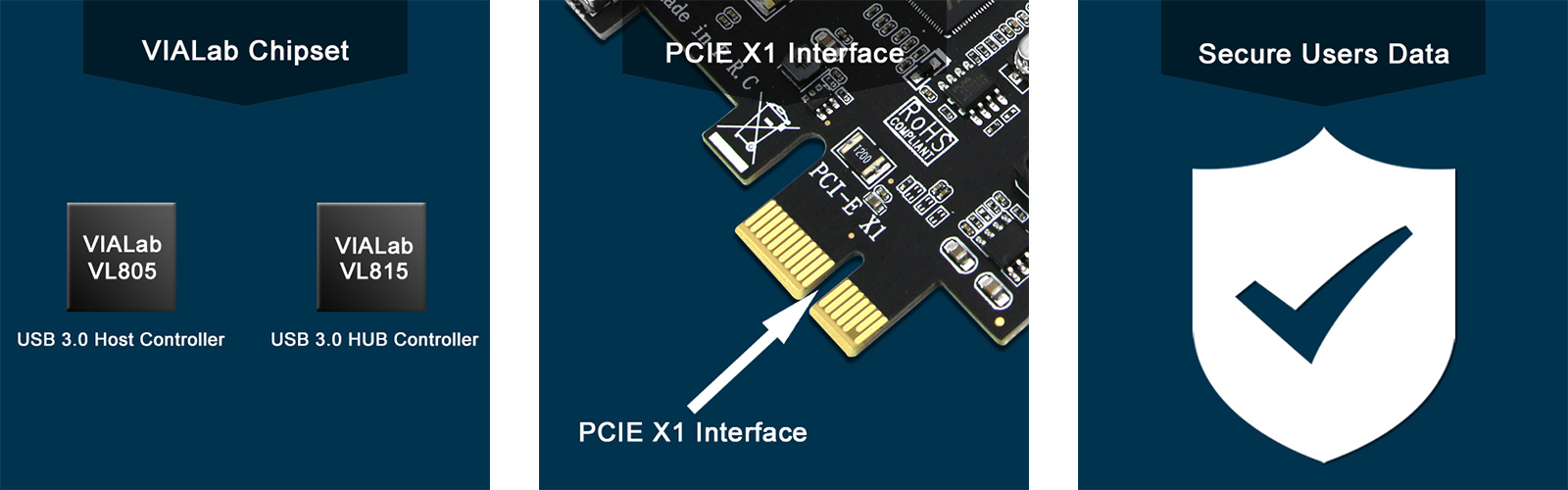

2. PCIE 2.0 X1 design will compatible with PCIE 2.0, 3.0, 4.0 protocol on PCIE X1, X4, X8, X16 slot.

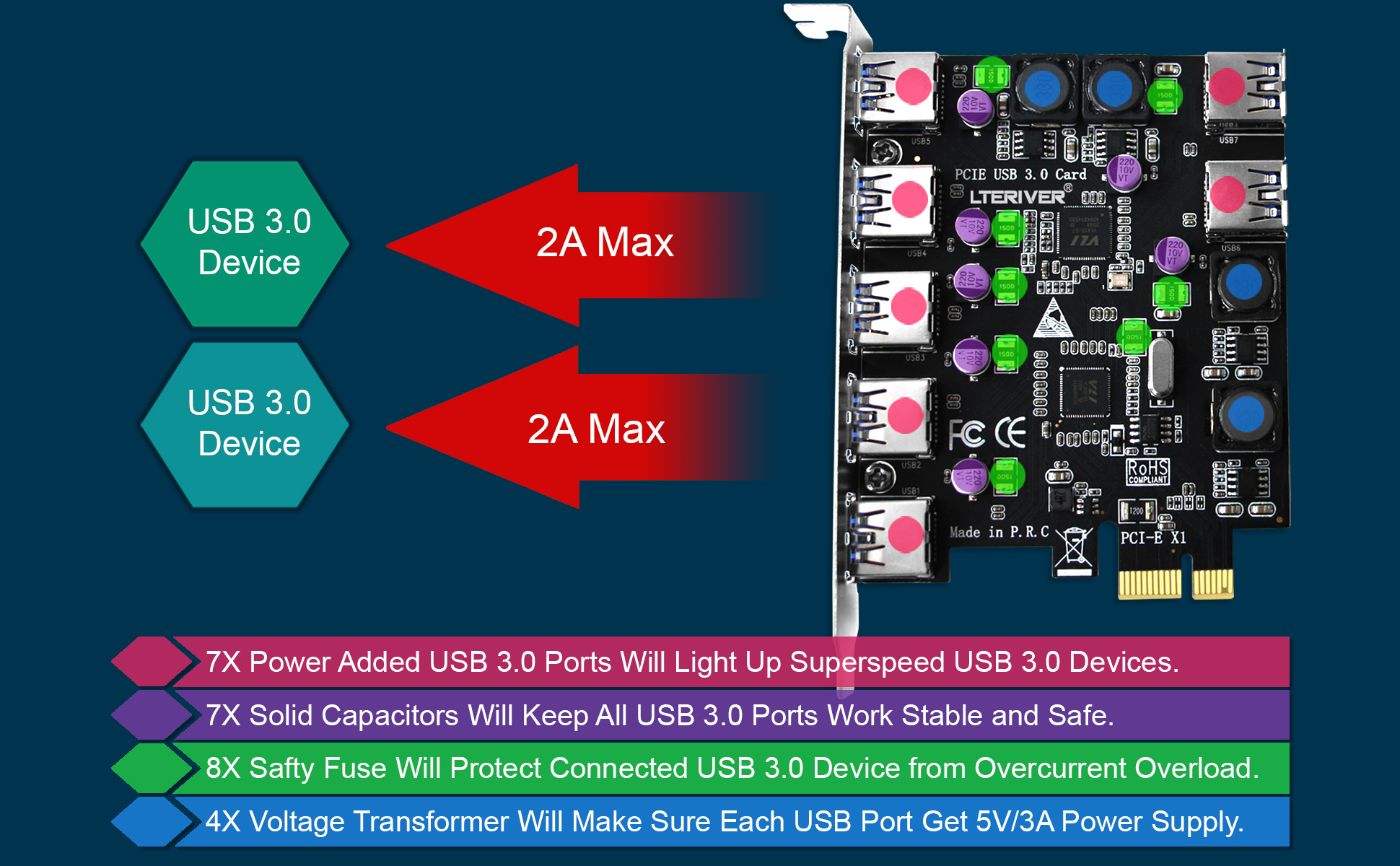

3. Built in LTERIVER Smart Power Control Technology. 4X voltage transformer make sure each USB ports get 5V/2A max power. 8X fuse protect connected USB device from overcurrent, overload. 4X solid capacitor keep all USB 3.0 ports works stable and safe.

Product Description:

PCE-U307A allow users add 7 USB 3.0 ports on desktop computers, will light up more USB device such as mice, keyboards, hubs, flash drive, hard drive etc. It will provide 5Gbps USB 3.0 total speed for video, audio or large data files transfer. Built in LTERIVER Smart Power Control Technology make sure connected high power consumption device always works in full performance.

LTERIVER Smart Power Control Technology

The LTERIVER Smart Power Control Technology is a new solution to add enough power supply on USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed 4X voltage transformer to pick up power from mother board, convert 12V/3.4A power to USB 5V/8A totally power and allocate 5V/2A max to each USB 3.0 port. Meanwhile, the 8X fuse and 7X solid capacitor protect connected USB 3.0 device from overload, over-current, overheat. Make sure all connected USB device works in full performance. Keep users’ data safe and complete.

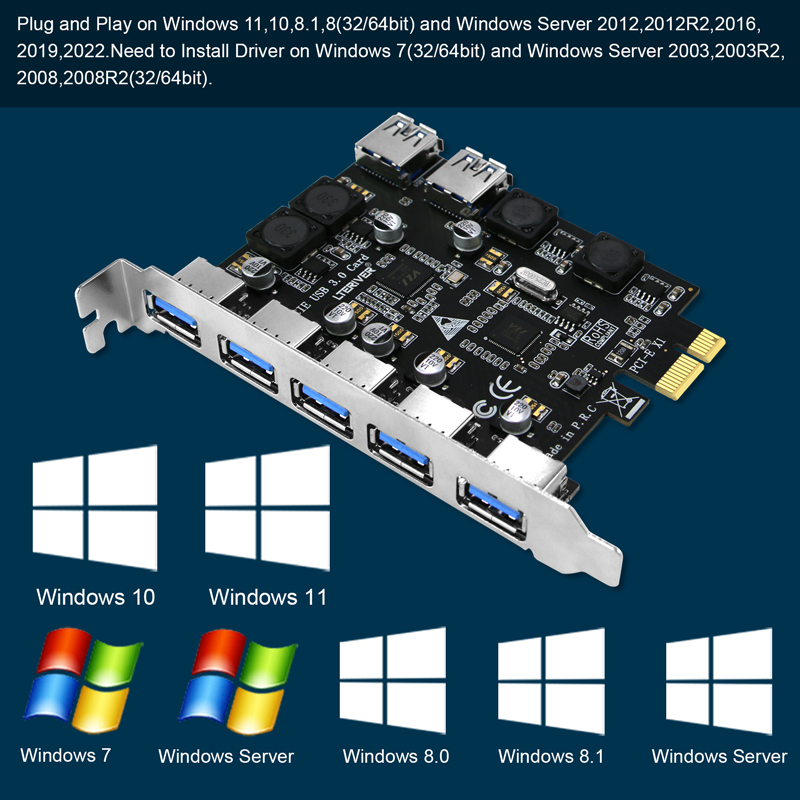

System Compatibility:

1. NOT support MAC OS and Linux system.

2. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) system.

3. Need to install driver on Windows Server, XP, Vista, 7 (32/64bit) System.

4. Windows Server: 2003, 2003R2, 2008, 2008R2 need to install driver, Windows Server 2012,2012R2, 2016, 2019, 2022 support plug and pay.

Package List: 1X PCE-U307A, 1X User Manual, 1X Mini CD, 1X Mount Screw
