LTERIVER PCIE 2-Ports Super Speed 5Gbps Max USB 3.1 Gen1 Type C Card for Windows 11, 10, 8.1, 8.0, 7, XP (32/64bit) and Windows Server Desktop PCs-2X USB-C 5Gbps Ports (PCE-U302C)

PCE-U302C allow users add 2X USB 3.1 Gen1 Type C ports on desktop computers. Will light up 2X USB-C device such as flash drive and SSD enclosure. It will provide 5Gbps USB 3.1 Gen1 total speed for video, audio, or large data files data transfer. Built in LTERIVER Smart Power Control Technology make sure connected high power consumption device always works in full performance.

LTERIVER Smart Power Control Technology

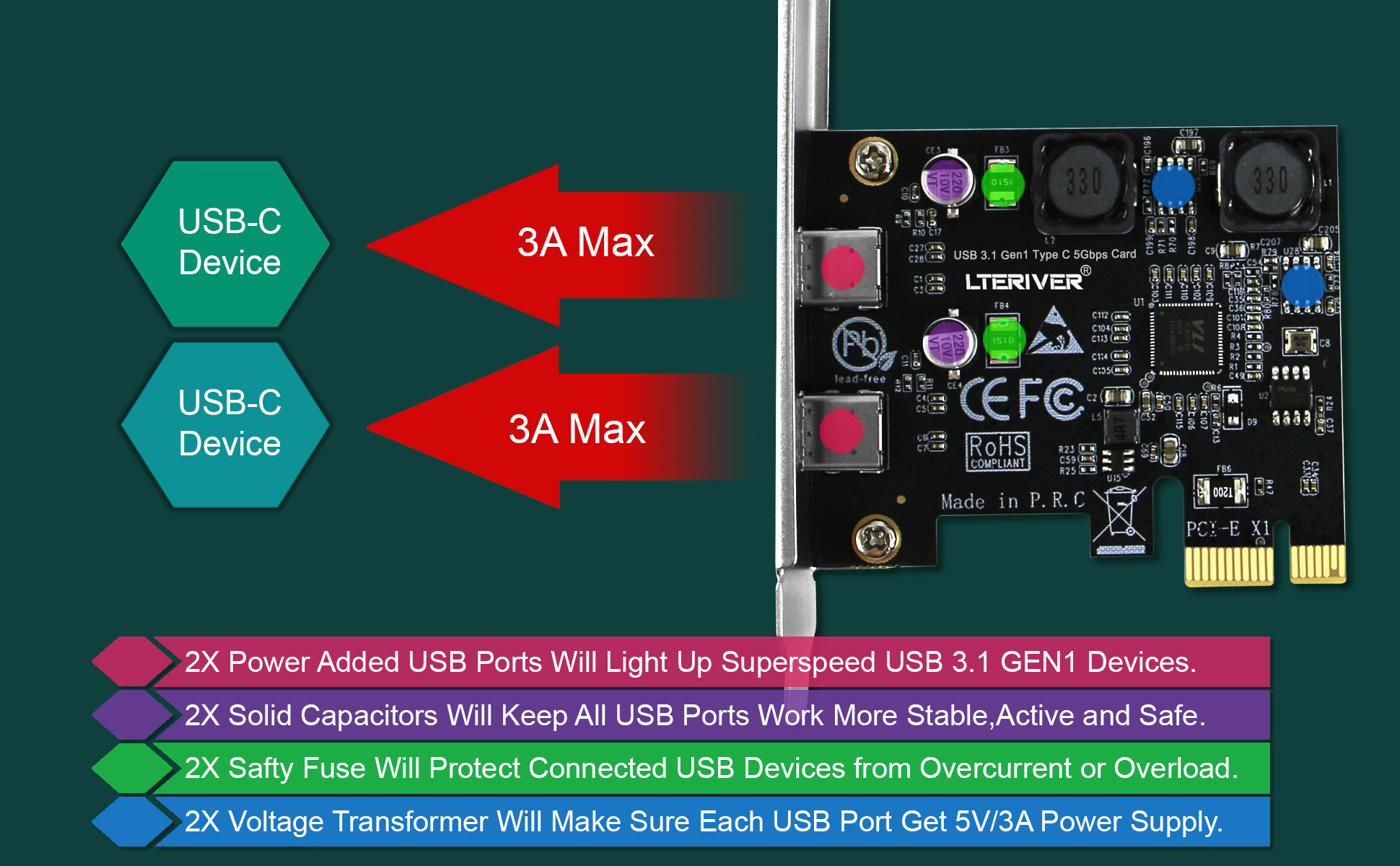

The LTERIVER Smart Power Control Technology is a new solution to add enough power supply on USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed 2X voltage transformer to pick up power from mother board, convert 12V/2.5A to 5V/6A power supply and allocate 5V/3A to each USB port. Meanwhile, the 2X fuse and 2X solid capacitor protect connected USB device from overload, over-current, overheat. Make sure all connected USB device works in full performance. Keep users’ data safe and complete.

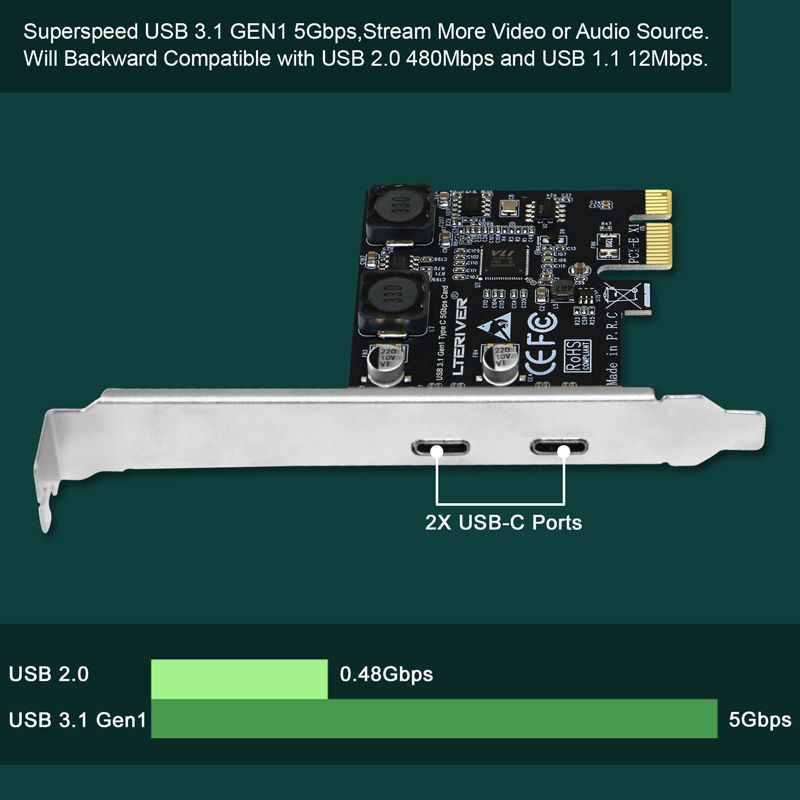

1. Add 2X super speed USB 3.1 Gen1 Type C 5Gbps (total bandwidth) ports on desktop PCs for USB-C accessory video, audio or large data files transfer. Active 2X more USB-C device on desktop PCs with this add-on USB-C expansion card.

2. Need to install driver on Windows Server 2003, 2003R2, 2008, 2008R2, XP, Vista,7 (32/64bit). Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012, 2016, 2019, 2022.

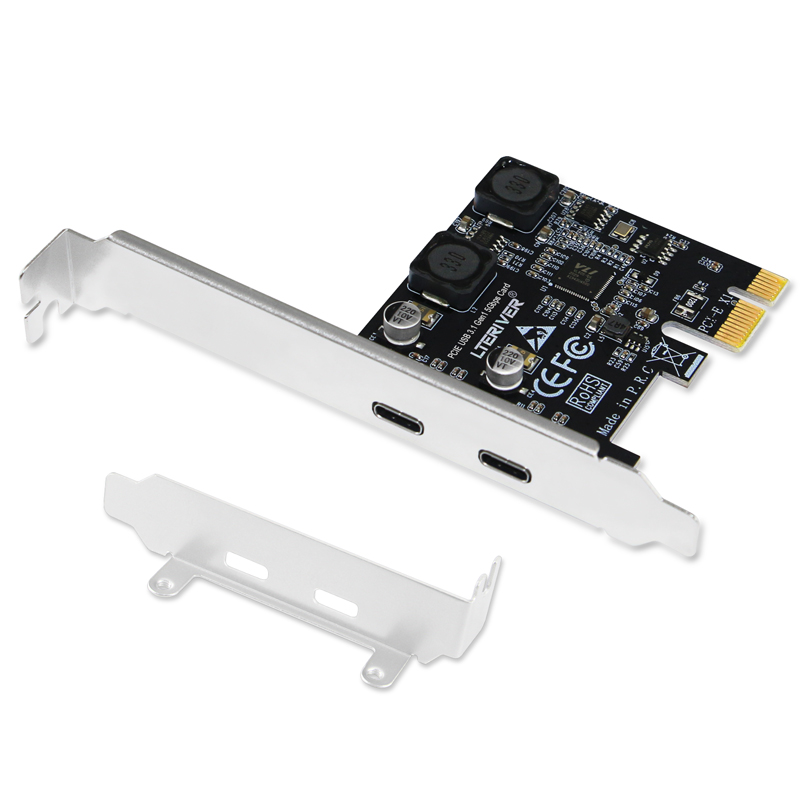

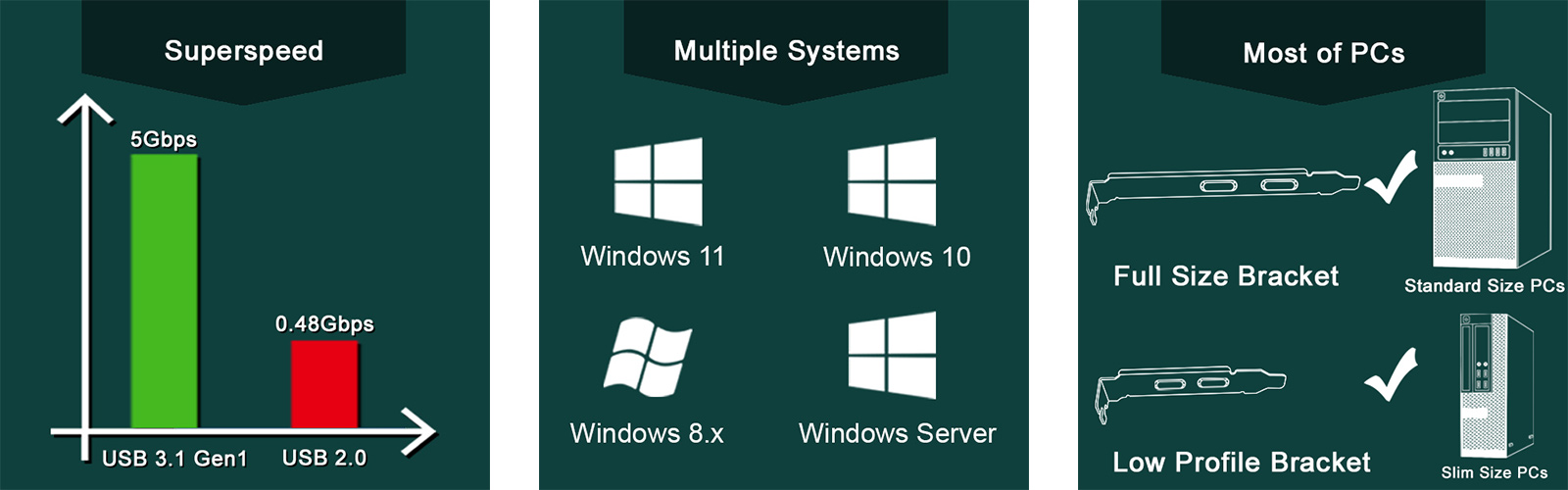

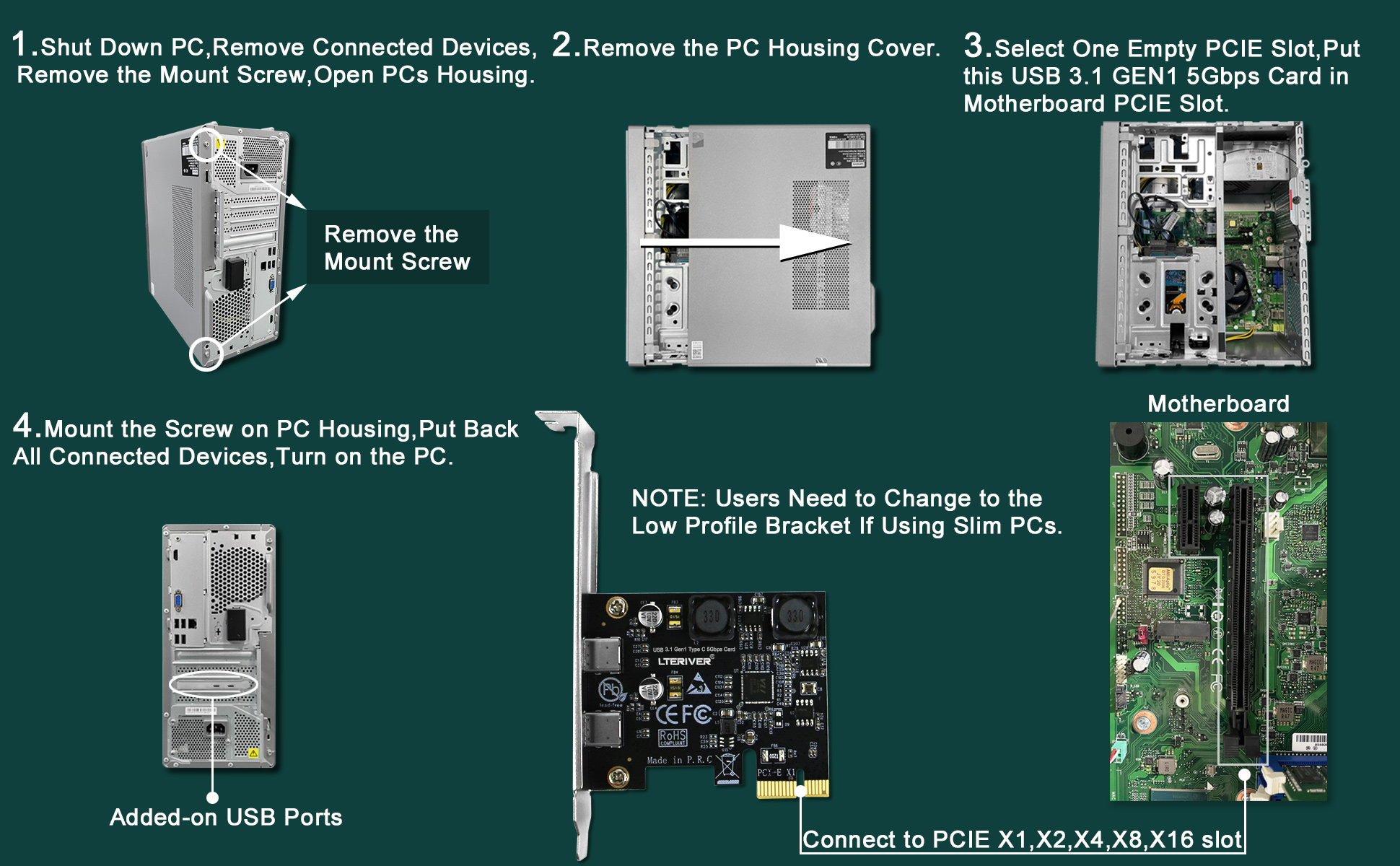

3. Support Standard Size and Slim Size PCs. The Full Size Bracket for Standard Size PCs, the Low Profile Bracket for Slim PCs.

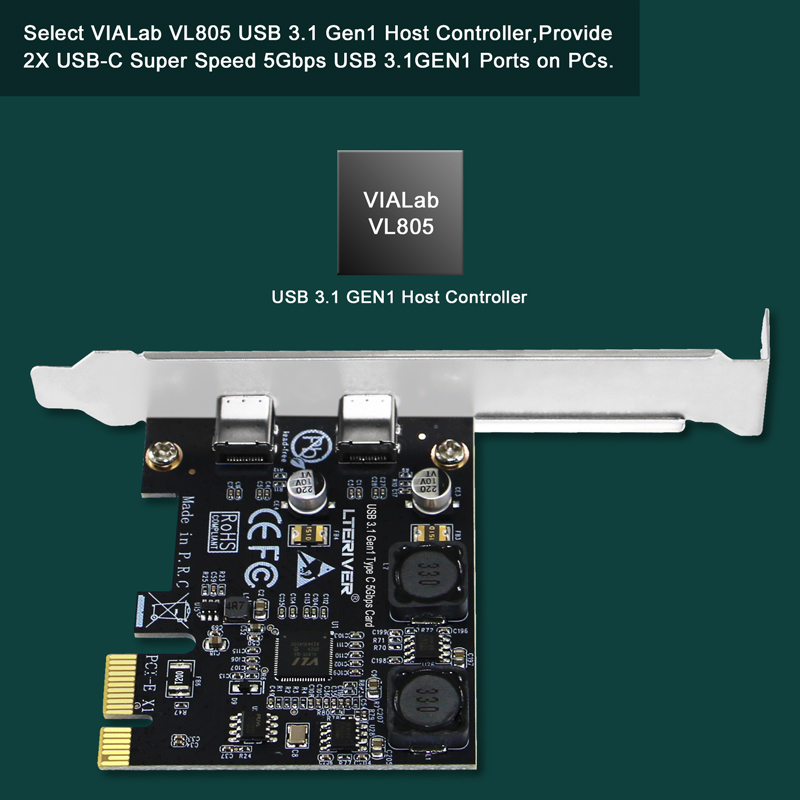

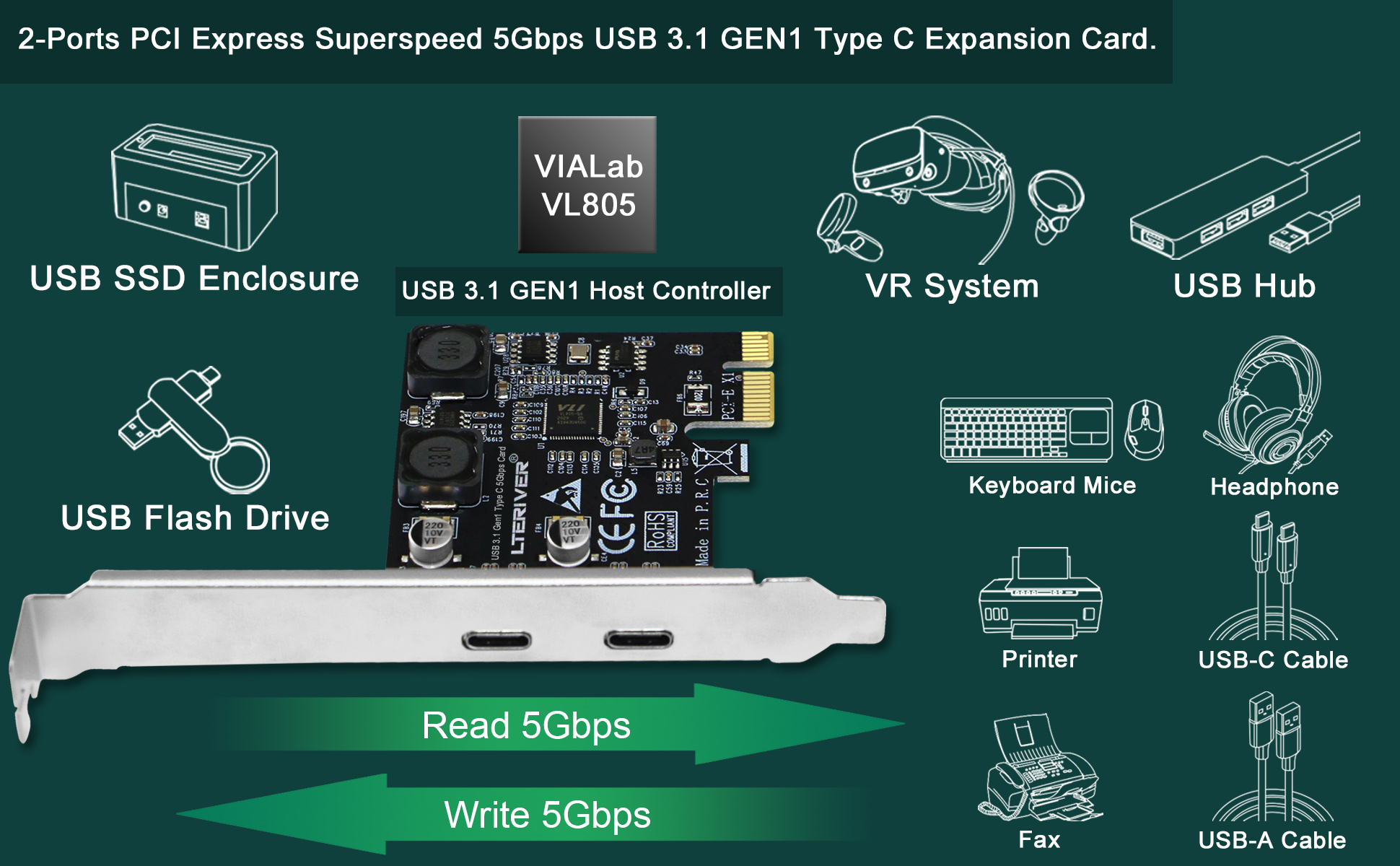

1. Select the VIALab VL805 USB 3.1 Gen1 Host Controller, will Compatible with INTEL, AMD and ARM Hardware Platform.

2. PCIE 2.0 X1 design will compatible with PCIE 2.0, 3.0, 4.0 protocol on PCIE X1, X2, X4, X8, X16 slot. Comes with full height bracket and low-profile bracket will works on full height desktop PCs and half size PCs.

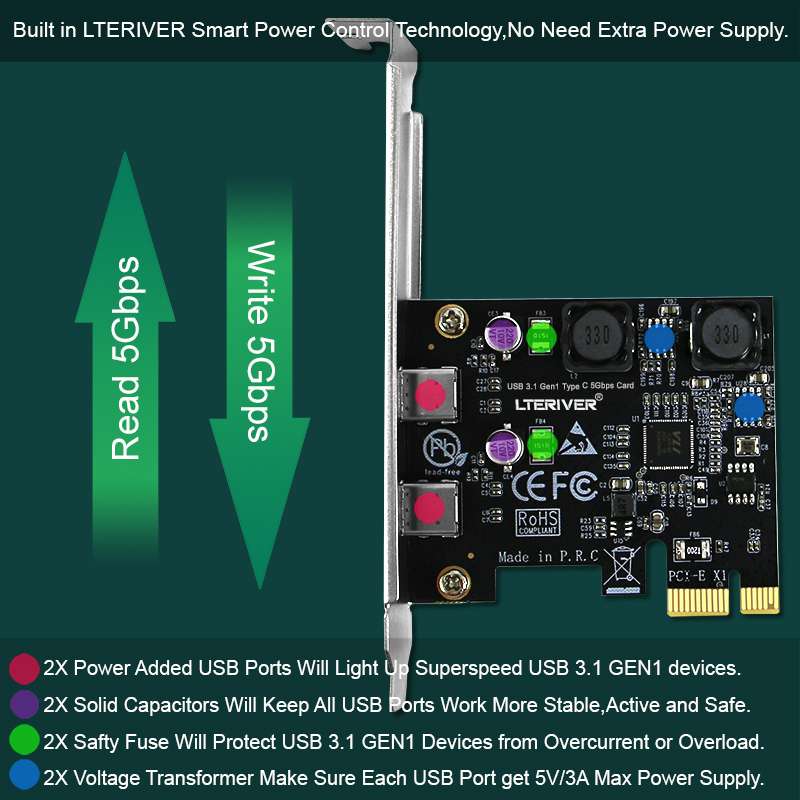

3. Built in LTERIVER Smart Power Control Technology. Users do not need to plug any additional power cable but get 5V/6A max power. Each USB-C port will get (5V/3A) 15W for connected USB device.

Product Description:

PCE-U302C allow users add 2X USB 3.1 Gen1 Type C ports on desktop computers. Will light up 2X USB-C device such as flash drive and SSD enclosure. It will provide 5Gbps USB 3.1 Gen1 total speed for video, audio, or large data files data transfer. Built in LTERIVER Smart Power Control Technology make sure connected high power consumption device always works in full performance.

LTERIVER Smart Power Control Technology

The LTERIVER Smart Power Control Technology is a new solution to add enough power supply on USB expansion cards. The old type USB host controller need to install additional power cable or cannot light up device. We designed 2X voltage transformer to pick up power from mother board, convert 12V/2.5A to 5V/6A power supply and allocate 5V/3A to each USB port. Meanwhile, the 2X fuse and 2X solid capacitor protect connected USB device from overload, over-current, overheat. Make sure all connected USB device works in full performance. Keep users’ data safe and complete.

System Compatibility:

1. NOT support MAC OS and Linux.

2. Driver free on Windows 8.0, 8.1, 10, 11 (32/64bit) and Windows Server 2012, 2016, 2019, 2022.

3. Need to install driver on Windows Server 2003, 2003R2, 2008, 2008R2 and Windows XP, Vista, 7 (32/64bit).

Package List: 1X PCE-U302C, 1X User Manual, 1X Mini CD, 1X Mount Screw, 1X Low Profile Bracket
